Repair Procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is the reverse of removal.
    CAUTION:
    • Use a new washer (A) whenever installing.

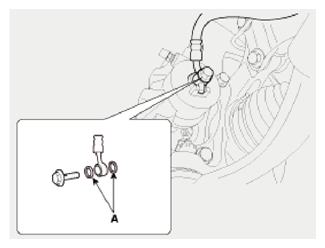

    Fig 1: Identifying Brake Line Washers
    G09133823Courtesy of HYUNDAI MOTOR AMERICA
  2. After installation, bleed the brake system.

    (Refer to BRAKE SYSTEM BLEEDING )

  3. Check the spilled brake oil.
