Repair Procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

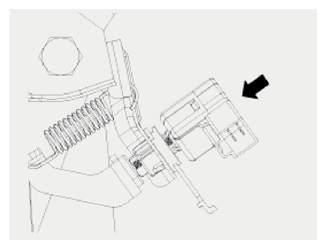

Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.

Fig 1: Fixing Brake Pedal Arm
Courtesy of HYUNDAI MOTOR AMERICA

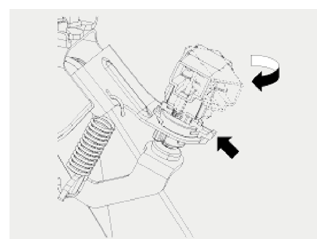

After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate (B) by pushing.

Fig 2: Turning Stop Switch
Courtesy of HYUNDAI MOTOR AMERICA

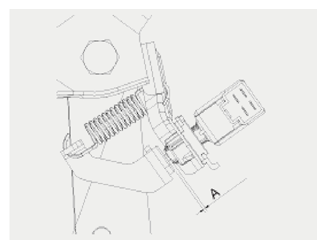

Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance : 1.0 ~ 2.0 mm (0.04~ 0.08 in.)

Fig 3: Identifying Gap Between Stop Lamp Switch And Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Connect the stop lamp switch connector.
NOTE: If the gap between stop lamp switch and bracket is not 1.0 ~ 2.0mm (0.04~ 0.08in), perform the above process again.
Install the lower crash pad.
(Refer to the "CRASH PAD ")
