Repair Procedures: Inspection
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Check the audio remote control switch (A) for resistance between connector terminals in each switch position.

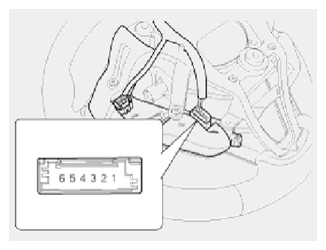

[LH-AUDIO]

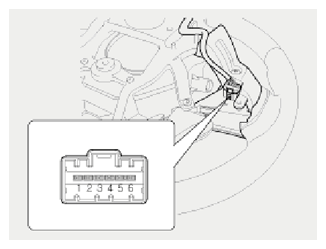

[RH-TRIP]
CONNECTOR TERMINAL SPECIFICATION (AUDIO)Switch Connector terminal Resistance
(±5%)Seek up 3-5 430 Ω Seek down 3-5 1.11 kΩ Mode 3-5 2.11 kΩ Volume up 3-5 4.61 kΩ Volume down 3-5 6.81 kΩ CONNECTOR TERMINAL SPECIFICATION (CRUISE)Switch Connector terminal Resistance
(±5%)ON/OFF 3-4 880 Ω Cancel 3-4 180 Ω SET - 3-4 330 Ω SET + 3-4 550 Ω CONNECTOR TERMINAL SPECIFICATION (BLUETOOTH + VOICE)Switch Connector terminal Resistance
(±5%)Voice 3-4 10.71 kΩ End of call 3-4 18.91 kΩ Send 3-4 40.91 kΩ CONNECTOR TERMINAL SPECIFICATION (TRIP + RESET)Switch Connector terminal Resistance
(±5%)Trip 3-4 2.54 kΩ Reset 3-4 5.54 kΩ
