Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING )
Remove the steering wheel.
(Refer to the "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening 4 screws.

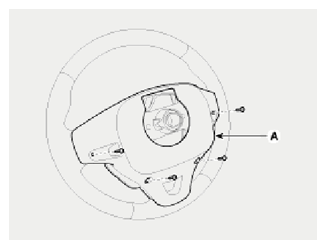

Fig 1: Identifying Steering Wheel Cover With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel remote control switches connectors.
[LH-Audio/Bluetooth + Voice]

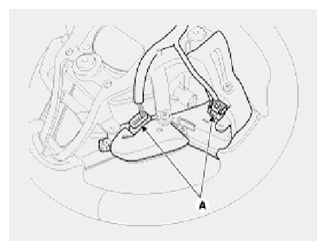

Fig 2: Identifying Steering Wheel Remote Control Switches Connectors (LH-Audio/Bluetooth + Voice)
Courtesy of HYUNDAI MOTOR AMERICA

[RH-Cruise/Trip + Reset]

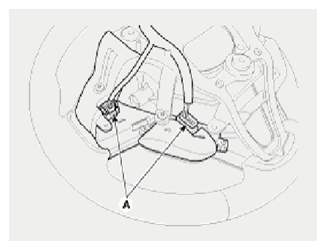

Fig 3: Identifying Steering Wheel Remote Control Switches Connectors (RH-Cruise/Trip + Reset)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the wiring and loosen 5 screws.
Remove the steering wheel remote control switch assembly (A).

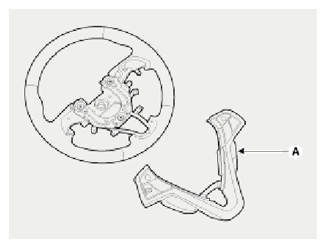

Fig 4: Identifying Steering Wheel Remote Control Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bluetooth switch and the trip switch (A) after loosening the screws.

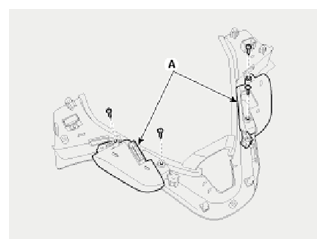

Fig 5: Identifying Bluetooth Switch And Trip Switch
Courtesy of HYUNDAI MOTOR AMERICA
