Power Door Lock Switch: Service and Repair

Inspection

Diagnosis With GDS
1. It will be able to diagnose defects of power door lock with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2. Select model and "BCM".
3. Select the "SJB" to check.

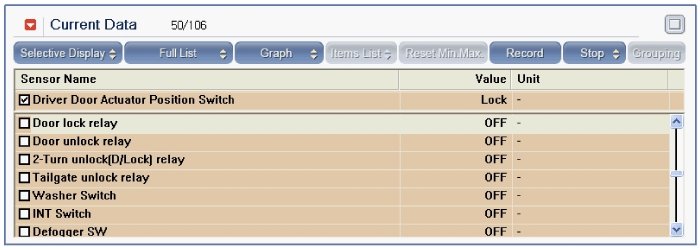

4. Select "Current data", if you will check current data of power door lock system. It provides input/output status of SJB.

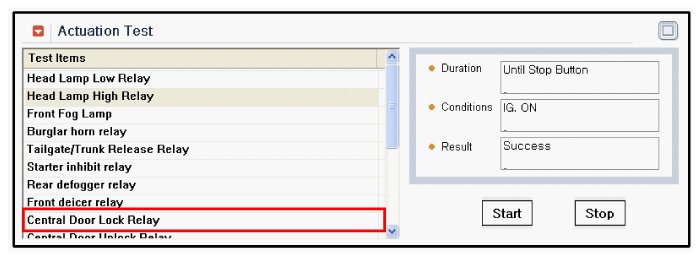

5. To check the power door lock operation manually, select "Actuation test".






Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the front door trim.

3. Remove the grip holder cover, after loosening the screw (4EA).




4. Remove the grip holder cover bracket.




5. Remover the power window switch (A), after loosening the bolts (4EA).






Installation

1. Install the power window switch.
2. Install the grip holder cover.
3. Connect the connector and install the front door trim panel.
