Relay Box: Application and ID

Fuse & Relay Information

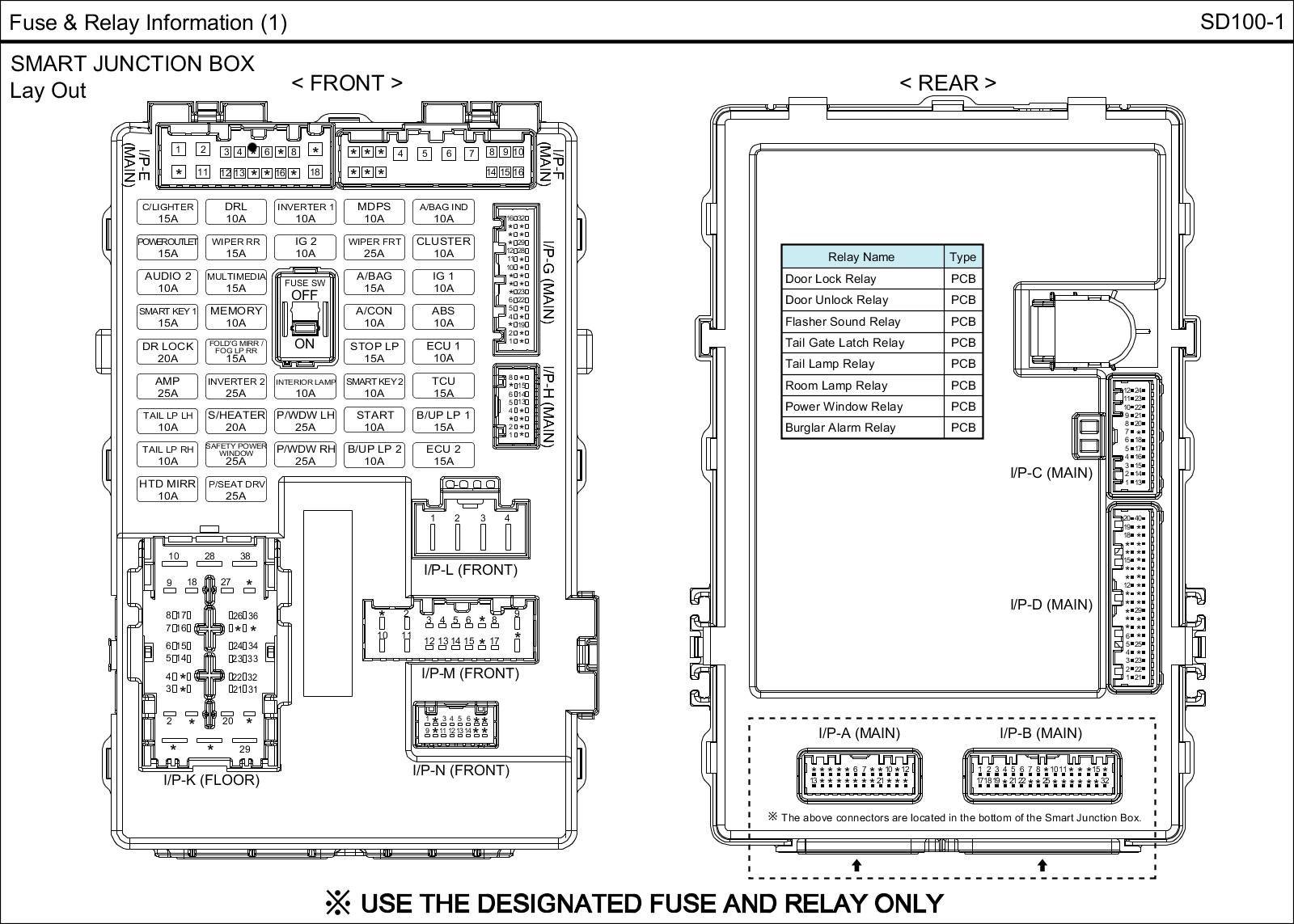

Smart Junction Box View:

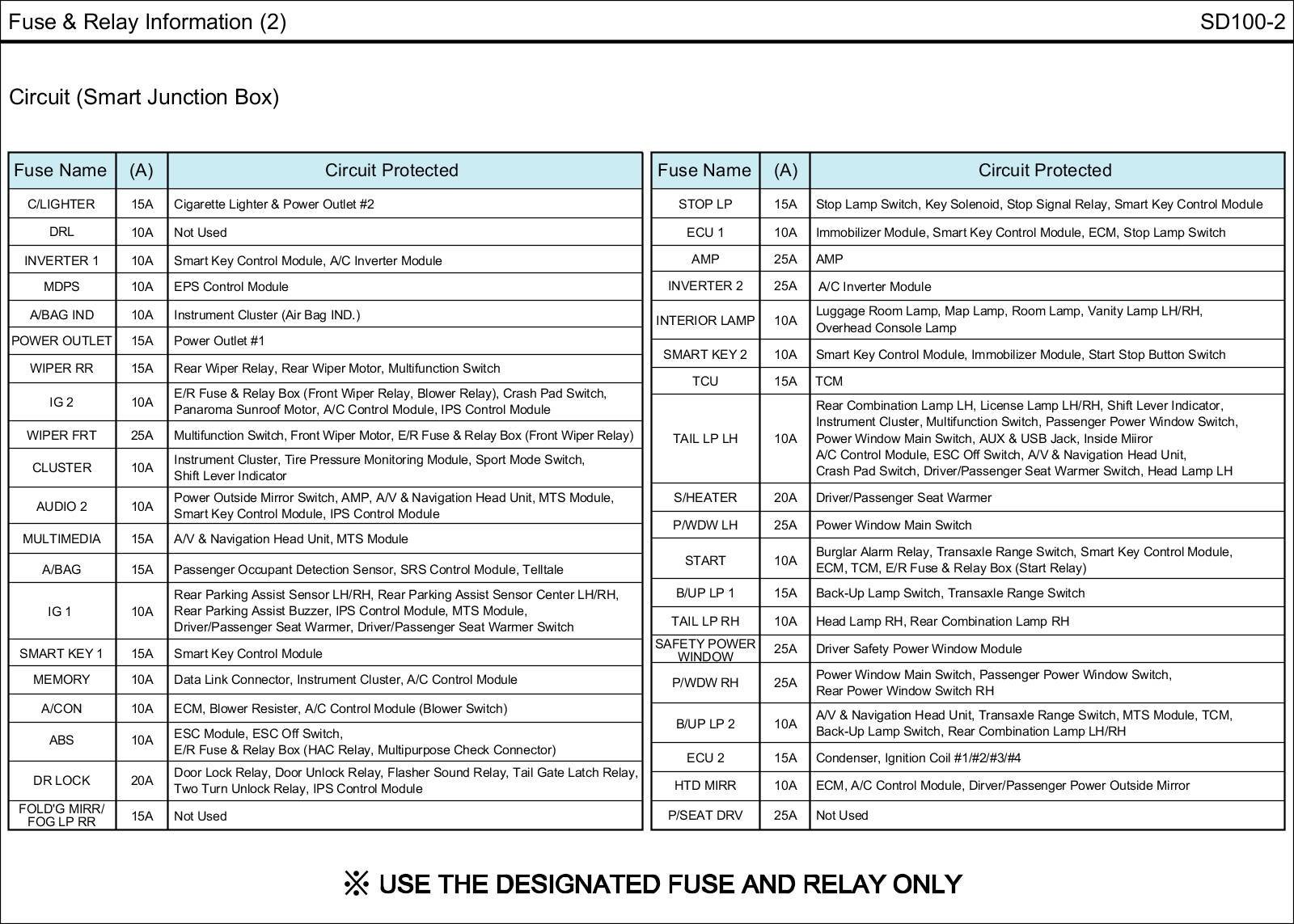

Smart Junction Box Circuit Details:




E/R Fuse & Relay Box View:

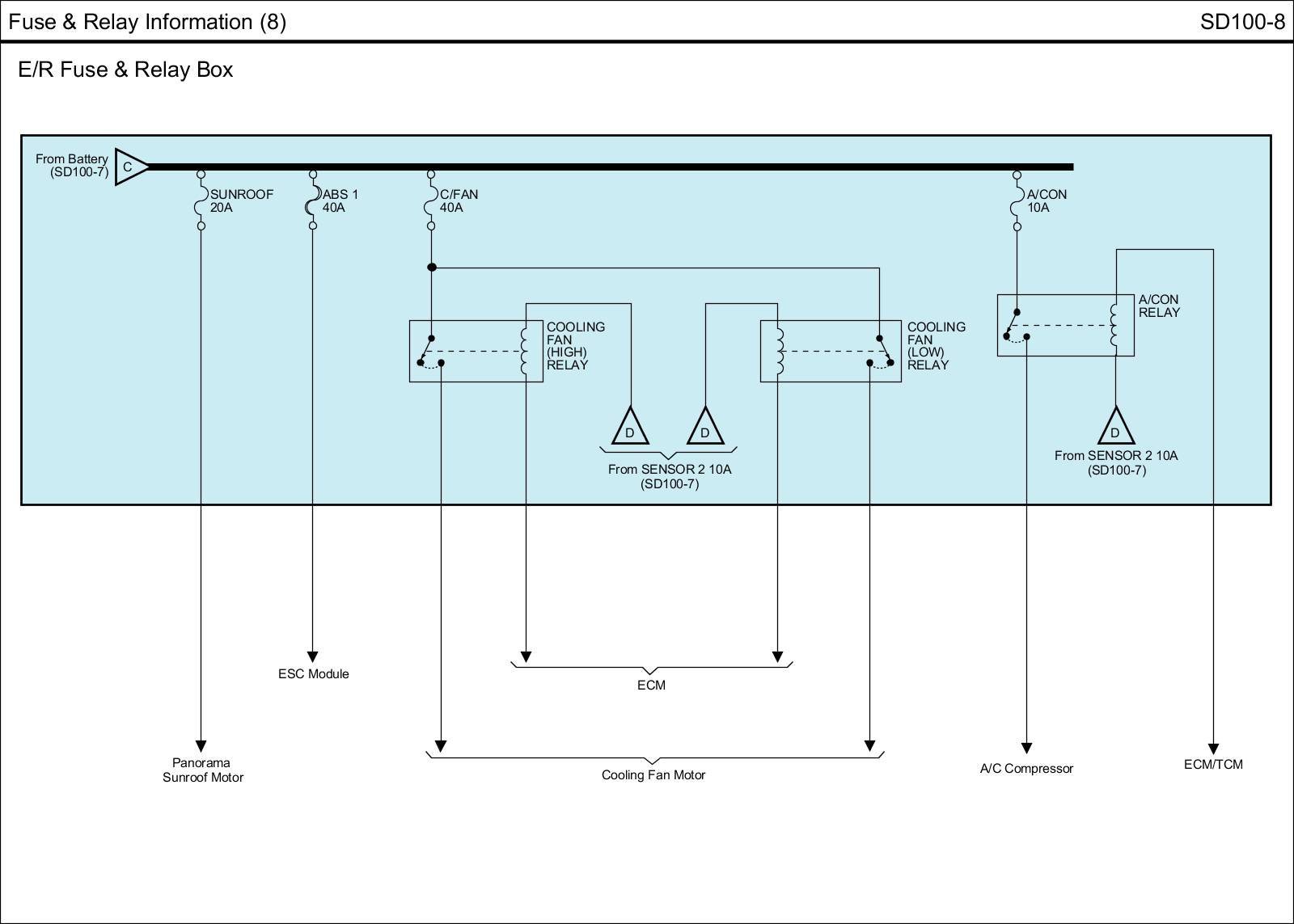

E/R Fuse & Relay Box Circuit Details:

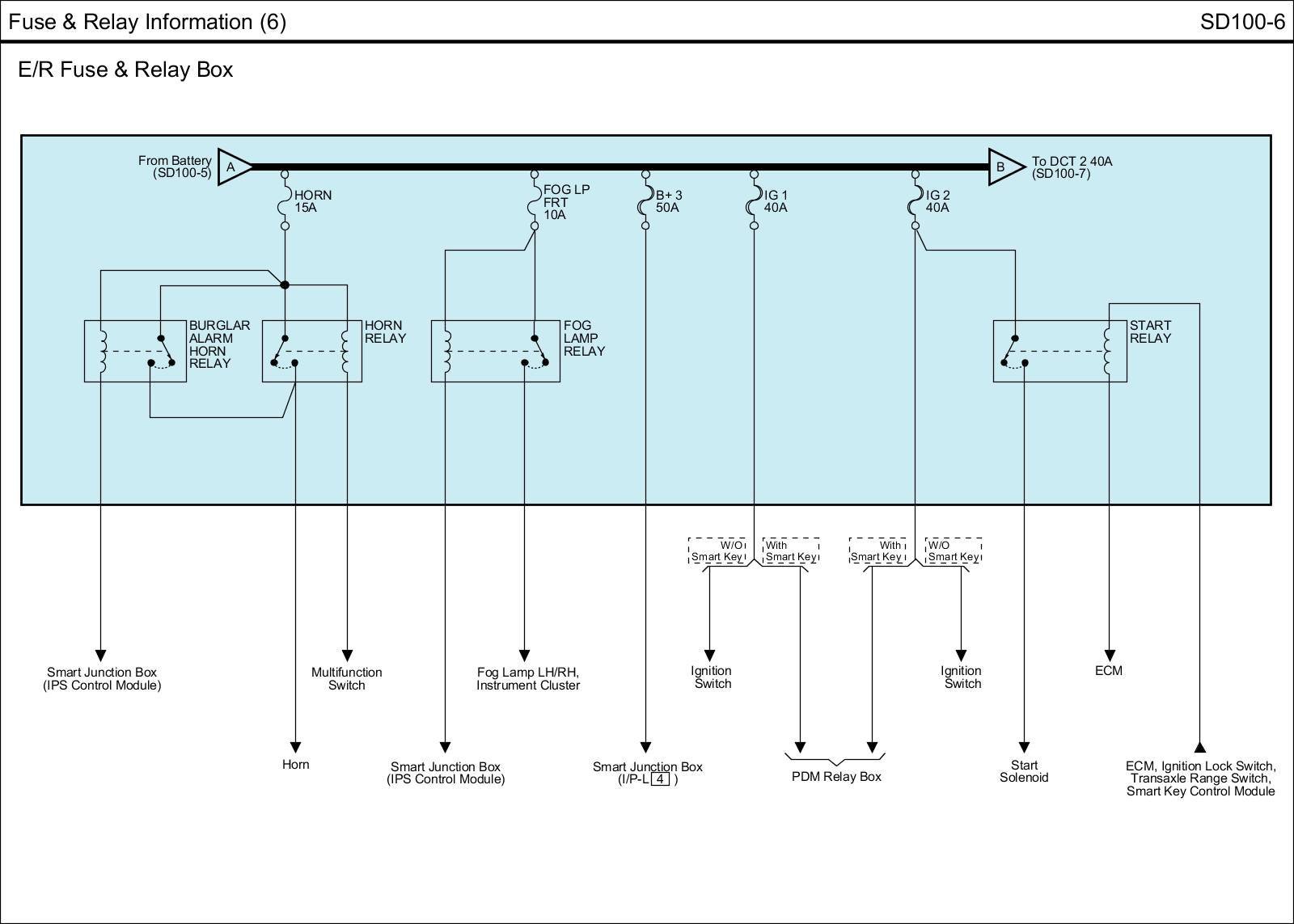

E/R Fuse & Relay Box View:

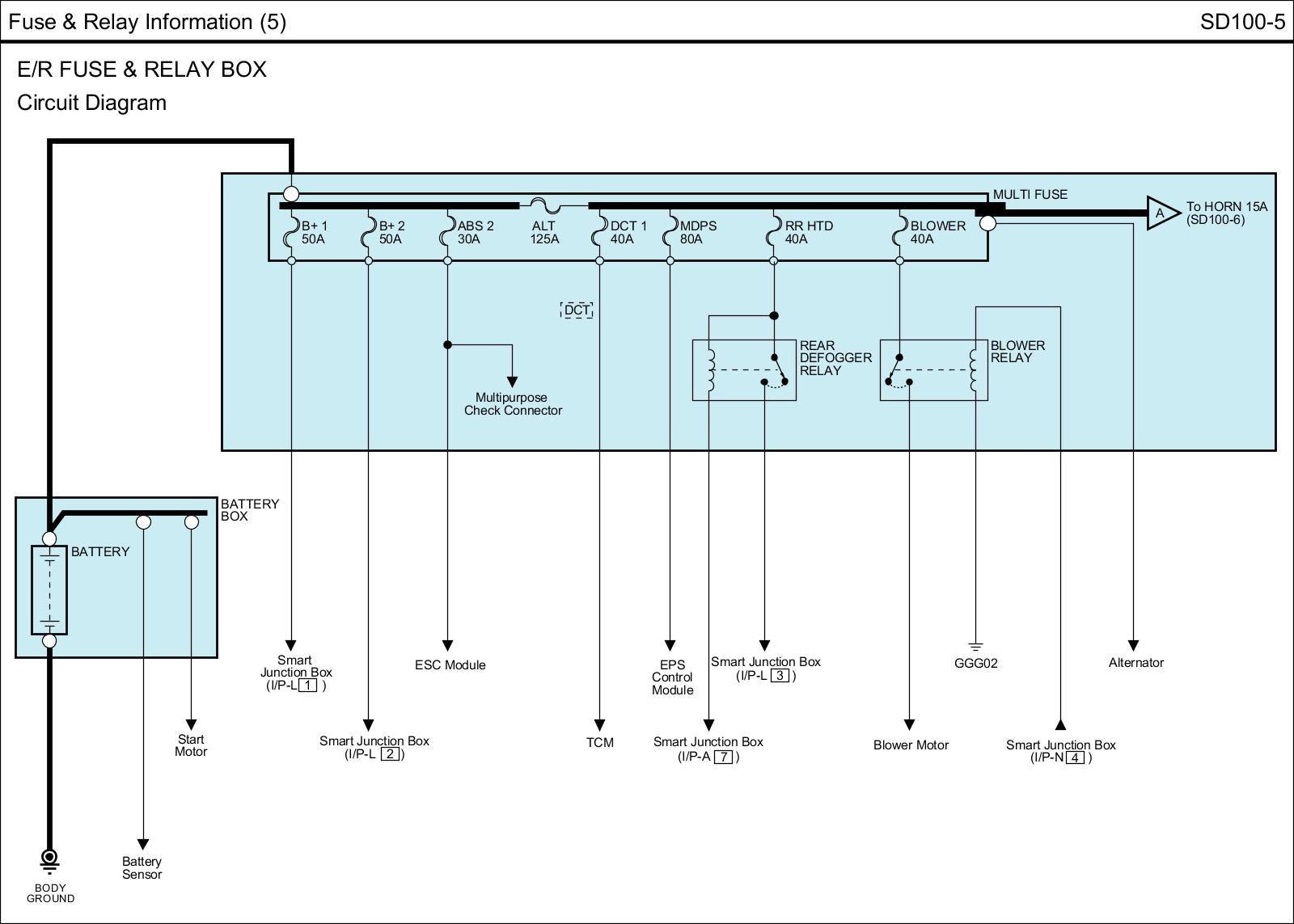

E/R Fuse & Relay Box View:




E/R Fuse & Relay Box View:




E/R Fuse & Relay Box View:




PDM Relay Box View:
