Passenger power window switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Passenger power window switch

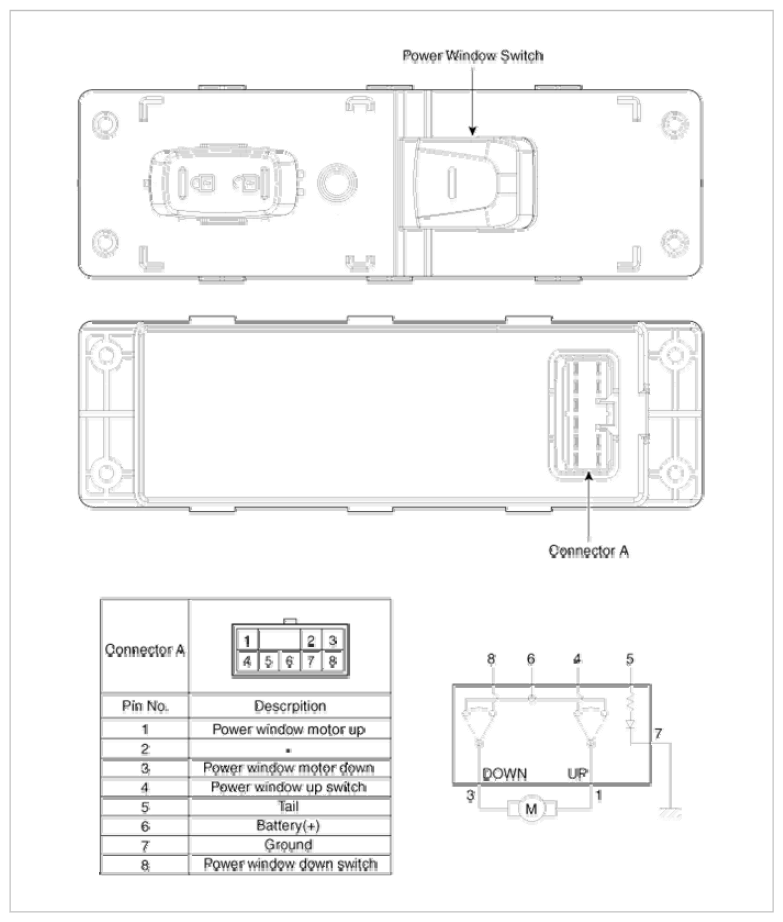

Fig 1: Passenger Power Window Switch Schematic
Courtesy of HYUNDAI MOTOR AMERICA
