Components and Components Location: Components

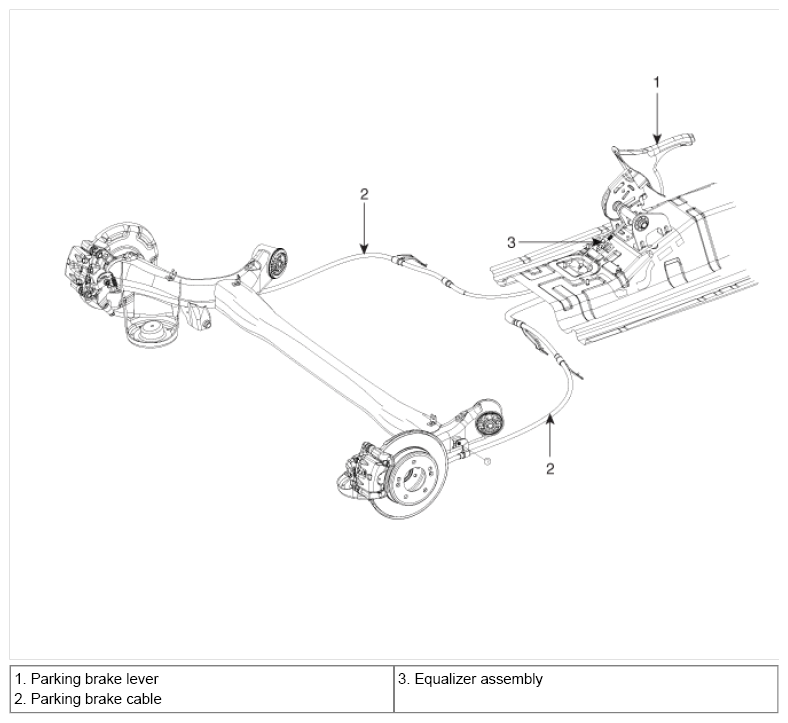

Fig 1: Identifying Equalizer Assembly, Parking Brake Lever And Cable
G08807593Courtesy of HYUNDAI MOTOR AMERICA
