Repair Procedures: Installation
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the ignition key from the vehicle.
- Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.
- Connect the clock spring harness connector to the clock spring.
- Install the steering column shroud.

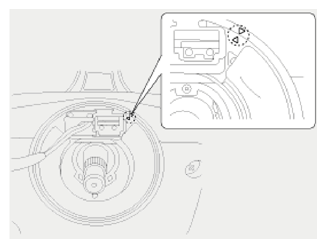

- Set the center position by setting the marks between the clock spring and the cover into line. Make an array the mark (→←) by turning the clock spring clockwise to the stop and then 3.0 revolutions counterclockwise.
- Install the steering wheel. (Refer to the STEERING COLUMN AND SHAFT )
- Connect the driver airbag (DAB) module connector, and then install the driver airbag (DAB) module on the steering wheel.
- Secure driver airbag (DAB) with the new mounting bolts.
Tightening torque:
7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft)
- Connect the battery negative cable.
- After installing the airbag, confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
- Make sure horn button works.
