Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Turn the steering wheel so that the front wheels can face straight ahead.

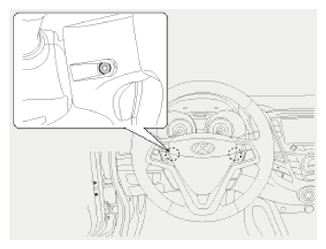

  3. Remove the driver airbag module mounting bolts (2EA).
    Fig 1: Driver Airbag Module Mounting Bolts
    G09133769Courtesy of HYUNDAI MOTOR AMERICA

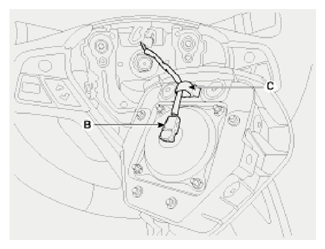

  4. Remove the wiring fixing clip (C), and then release the connector locking pin to disconnect the driver airbag module connector (B).
    Fig 2: Driver Airbag Module Connector & Fixing Clip
    G09133770Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

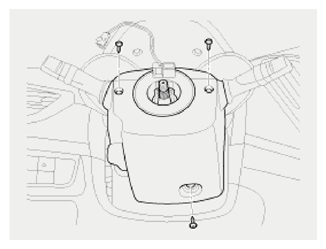

  5. Remove the steering wheel and steering wheel column shroud. (Refer to "STEERING COLUMN AND SHAFT ")
    Fig 3: Steering Wheel & Steering Wheel Column Shroud
    G09133771Courtesy of HYUNDAI MOTOR AMERICA

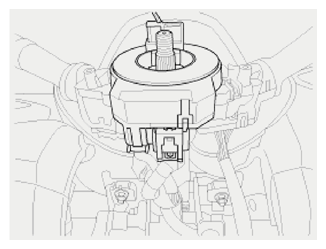

  6. Disconnect the clock spring connector, then remove the clock spring.
    Fig 4: Clock Spring Connector
    G09133772Courtesy of HYUNDAI MOTOR AMERICA
