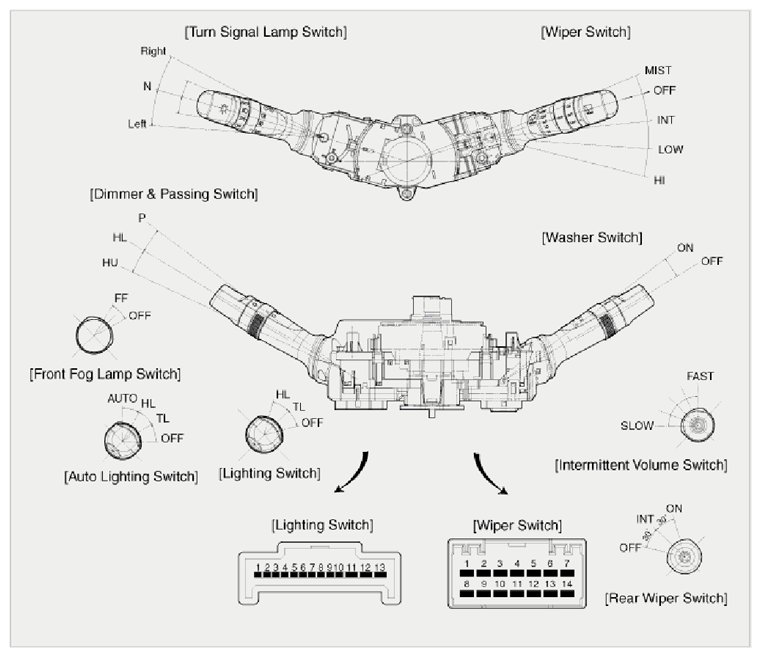

Components and Components Location: Components(1)
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
| Connector name | No | Description | Connector name | No | RH SIDE |
|---|---|---|---|---|---|
| Lighting (13 pin)-LH side | 1 | Lighting switch ground | Washer & Wiper (14 pin)-RH side | 1 | MIST switch |
| 2 | Tail lamp switch | 2 | Wiper parking | ||
| 3 | Auto light switch | 3 | Wiper low speed | ||
| 4 | Head lamp switch | 4 | - | ||
| 5 | Fog switch base | 5 | Rear washer switch | ||
| 6 | Front fog switch | 6 | IGN2-Rear wiper & washer | ||
| 7 | - | 7 | INT rear wiper switch | ||
| 8 | Head lamp low beam | 8 | Intermittent wiper switch | ||
| 9 | Head lamp high beam | 9 | Wiper high speed | ||
| 10 | Dimmer switch base | 10 | ING2-Front washer & wiper | ||
| 11 | Turn signal left | 11 | Washer switch | ||
| 12 | Turn signal base | 12 | Intermittent volume base | ||
| 13 | Turn signal right | 13 | Intermittent time | ||
| 14 | Rear wiper switch | ||||
