Repair Procedures: Replacement
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the heater & blower unit.
(Refer to "HEATER UNIT ")

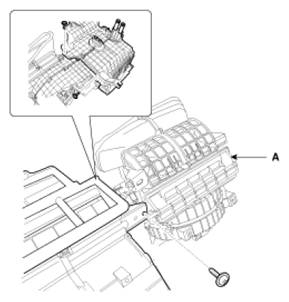

- Remove the blower unit (A) from the heater unit after loosening a mounting screws.
NOTE: Make sure that there is no air leaking out of the blower and duct joints
- Installation is the reverse order of removal.
