Repair Procedures: Removal
- Remove valve core and deflate the tire.

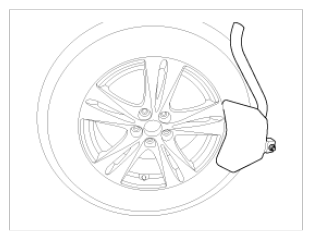

- Remove the side of the tire bead area from the wheel using tire changing machine.
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:- The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.

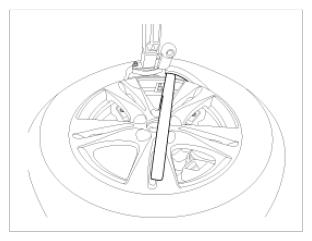

- Avoid tire/tool contact with the valve on dismount.
- Dismount should end near the valve.

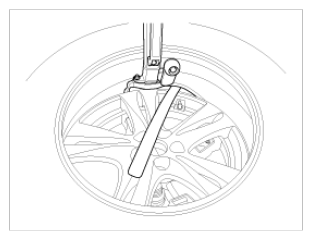

- Rotate the wheel clockwise.
