Wheel Runout

  1. Jack up the vehicle and support it with jack stands.
  2. Measure the wheel runout with a dial indicator as illustrated.
  3. Replace the wheel if the wheel runout exceeds the limit.
    Type Radius direction Axis direction
    Aluminium 0.3mm (0.01in) 0.3mm (0.01in)

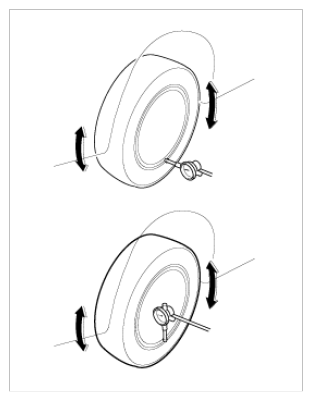

    Fig 1: Measuring Wheel Runout Using Dial Indicator
    G08807333Courtesy of HYUNDAI MOTOR AMERICA
