Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. After loosening the mounting bolts, then remove the third seat assembly (A).

    (Refer to REAR SEAT )

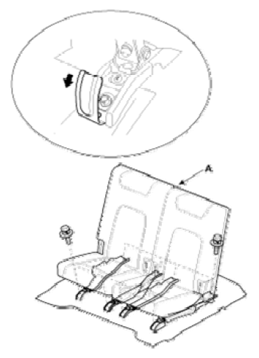

    Fig 1: Identifying Third Seat Assembly
    G06861701Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the antenna nuts (2EA) and connector (A), remove the interior 3 antenna (B).
    Fig 2: Identifying Antenna Nuts & Connector
    G06861702Courtesy of HYUNDAI MOTOR CO.
