Components and Components Location: Components

Fig 1: Timing System Replacement Components With Torque Specifications (1 Of 2)
G06856666Courtesy of HYUNDAI MOTOR CO.

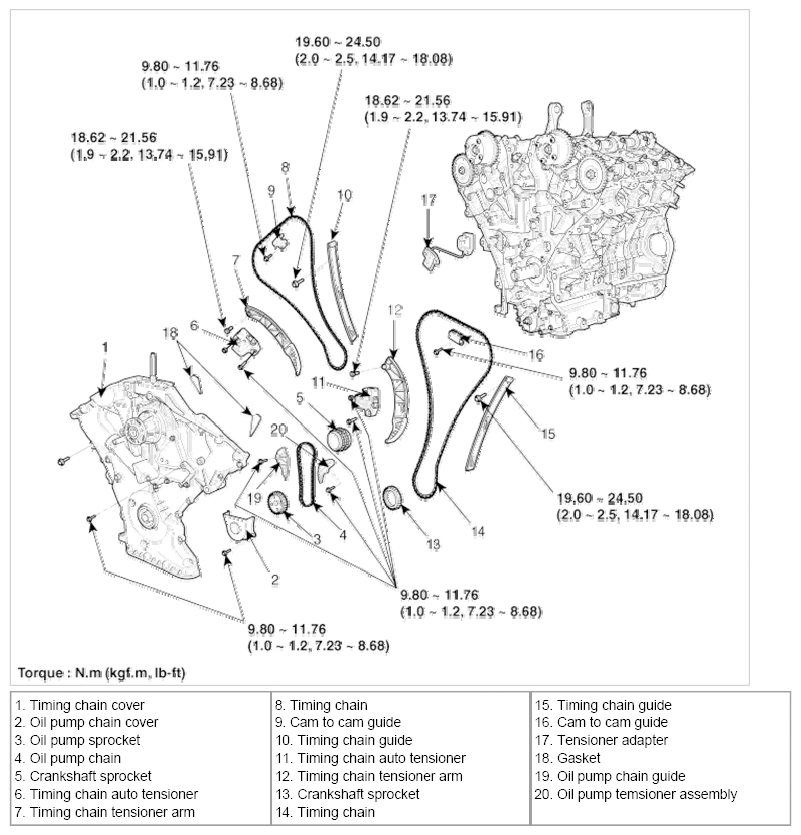

Fig 2: Timing System Replacement Components With Torque Specifications (2 Of 2)
G06856667Courtesy of HYUNDAI MOTOR CO.
