Monitor DTC Status

  1. Check DTC Status
    1. Connect scan tool to Data Link Connector (DLC).
    2. IG "ON".
    3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu
    4. Read "DTC Status" parameter.

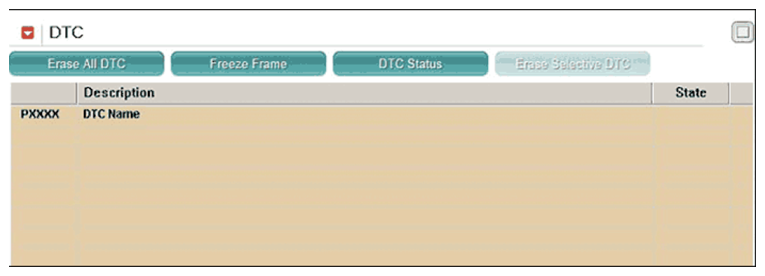

      Fig 1: Scan Tool Display - DTC
      G06859701Courtesy of HYUNDAI MOTOR CO.

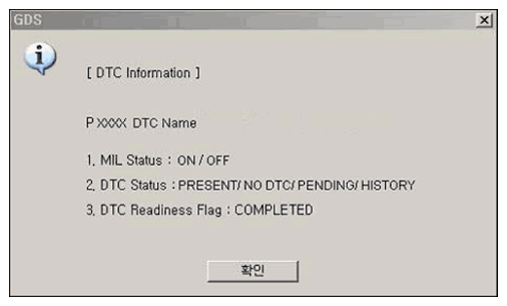

      Fig 2: Scan Tool Display - GDS
      G06859702Courtesy of HYUNDAI MOTOR CO.
    5. Is parameter displayed "Present fault"?

      YES

      1. Go to COMPONENT INSPECTION  procedure.

      NO

      1. Fault is intermittent caused by PCM memory was not cleared after repair.

        Erase DTC and drive the vehicle to satisfy the enable condition then, Go to COMPONENT INSPECTION  procedure.
