Component Inspection 2: Notes

IG KEY OFF.
Remove the TCU.
Measure the resistance of "SLC1" "SLC2" "SLC3" "SLB1" solenoid-valves.
1. Specification: Approx. 5.0 ~ 5.6 Ω (20°C)

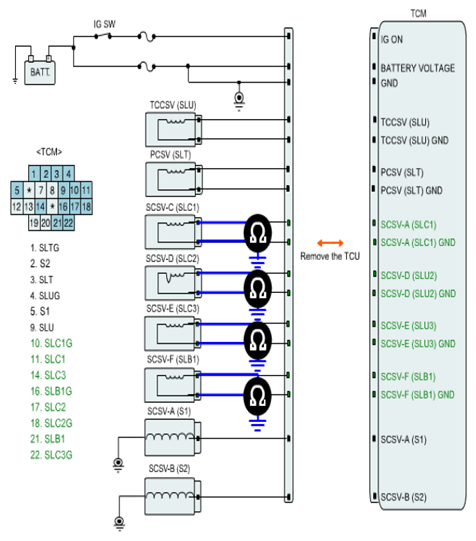

Fig 1: Measuring Resistance Of SLC1, SLC2, SLC3 & SLB1 Solenoid-Valves
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
YES
1. Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to VERIFICATION OF VEHICLE REPAIR procedure.
NO
1. Replace solenoid-valve as necessary and Go to VERIFICATION VEHICLE REPAIR procedure.
