Repair procedures (F21): Removal

Remove the shift lever knob (A).

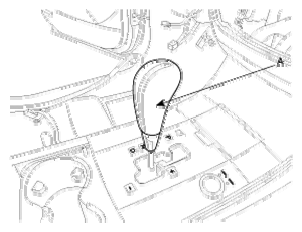

Fig 1: Identifying Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the center console cover (A).

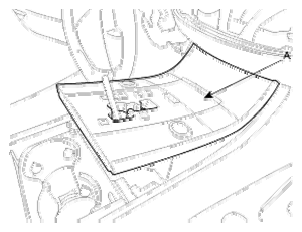

Fig 2: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the center console. (Refer to CONSOLE )
Remove the shift cable assembly (C) by removing the clamp (A) and the snap pin (B).

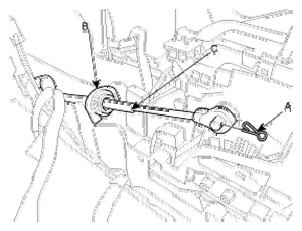

Fig 3: Identifying Clamp And Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Disconnect the interlock switch connector (A).

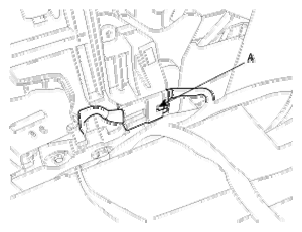

Fig 4: Identifying Interlock Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A).

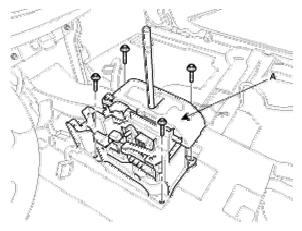

Fig 5: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and nuts (B).

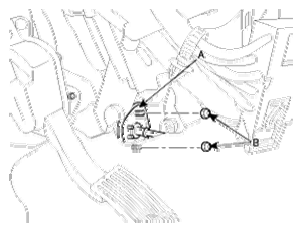

Fig 6: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.

NOTE: In case, remove the crash pad and cowl cross bar. (Refer to CRASH PAD and HEATER UNIT )
Remove the shift cable assembly from the transaxle. (Refer to REMOVAL )
Remove the shift cable assembly.
