Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC)
  2. Engine "ON".
  3. Monitor the "CAN COMMUNICATION SERVICE DATA (ENGINE RPM, VEHICLE SPEED SENSOR, THROTTLE P. SENSOR)" parameters on the scan tool

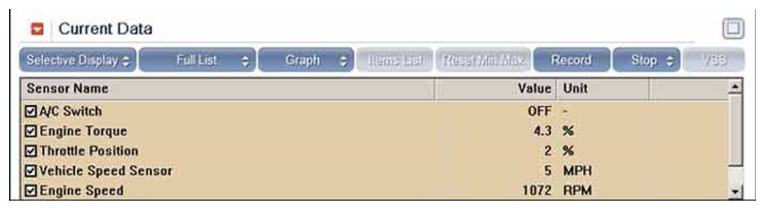

    Fig 1: Monitoring CAN Communication Service Data (Engine RPM, Vehicle Speed Sensor, Throttle P. Sensor) Parameters On Scan Tool - Low- RPM
    G06861227Courtesy of HYUNDAI MOTOR CO.

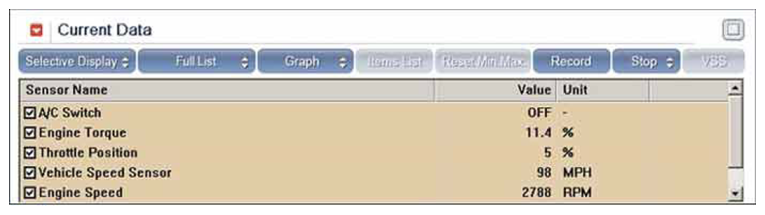

    Fig 2: Monitoring CAN Communication Service Data (Engine RPM, Vehicle Speed Sensor, Throttle P. Sensor) Parameters On Scan Tool - High-RPM
    G06861228Courtesy of HYUNDAI MOTOR CO.
  4. Does "CAN BUS LINE DATA" follow the reference data?

    YES

    1. Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to VERIFICATION VEHICLE REPAIR  procedure.

    NO

    1. Go to W/ HARNESS INSPECTION  procedure
