Repair procedures (F21): Installation

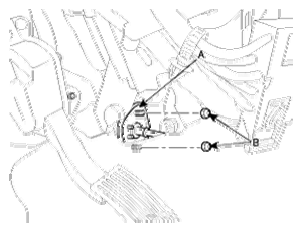

Install the retainer (A) and nuts (B).
Tightening torque :

12-15Nm (1.2-1.5kgf.m, 8.7-10.8lb-ft)

Fig 1: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.

NOTE: In case, install the crash pad and cowl cross bar. (Refer to CRASH PAD and HEATER UNIT )

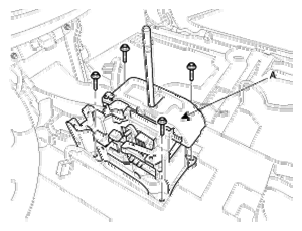

Install the shift lever assembly (A).
Tightening torque :

9-14Nm (0.9-1.4kgf.m, 6.5-10.1lb-ft)

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

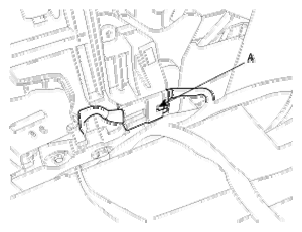

Connect the interlock switch connector (A).

Fig 3: Identifying Interlock Switch Connector
Courtesy of HYUNDAI MOTOR CO.

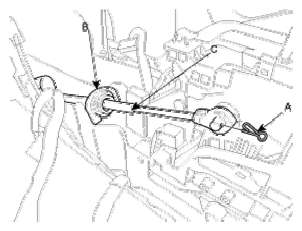

Install the shift cable assembly (C) by installing the clamp (A) and the snap pin (B).

Fig 4: Identifying Clamp And Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Install the center console. (Refer to CONSOLE )

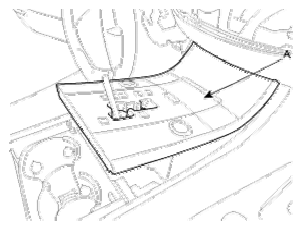

Install the center console cover (A).

Fig 5: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.

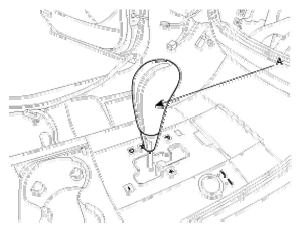

Install the shift lever knob (A).

Fig 6: Identifying Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.

NOTE: Before completing installation, adjust the shift cable referring to ADJUSTMENT section.
Install the shift cable assembly to transaxle. (Refer to INSTALLATION )
