Heater & A/C Control Unit (Full Automatic)
>>
Components And Components Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components And Components Location
Components
Control Panel

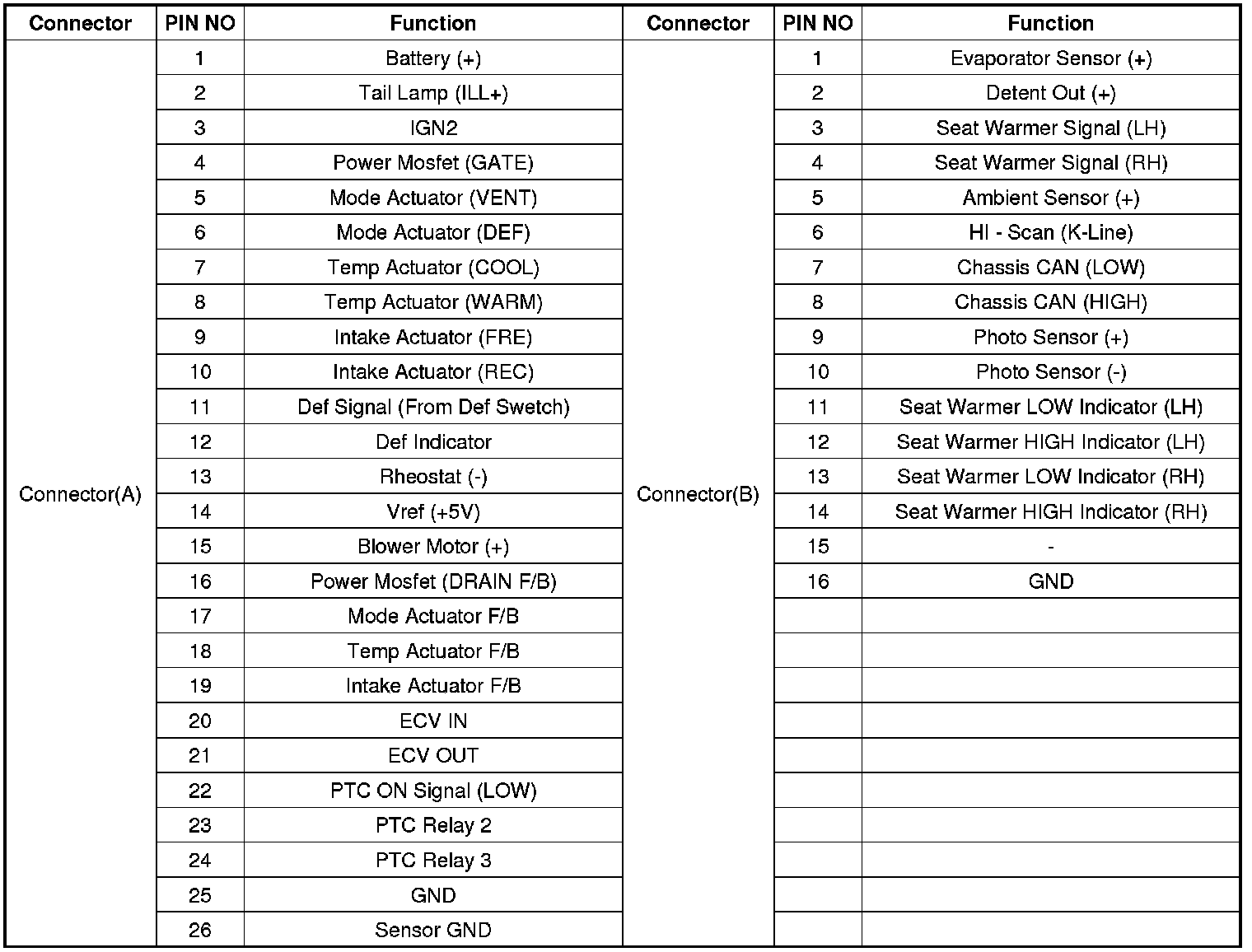

Connector pin function
