Power Window Switch: Diagrams

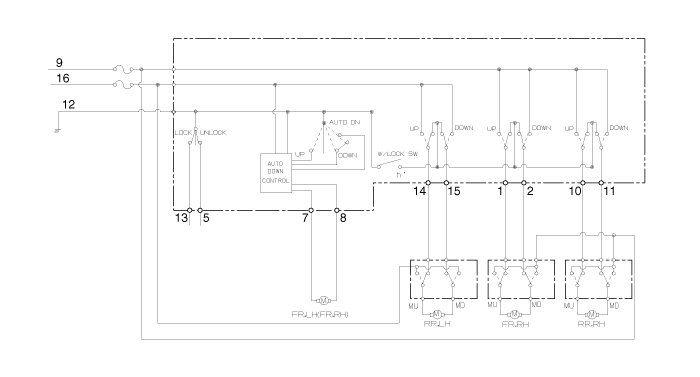

Circuit Diagram

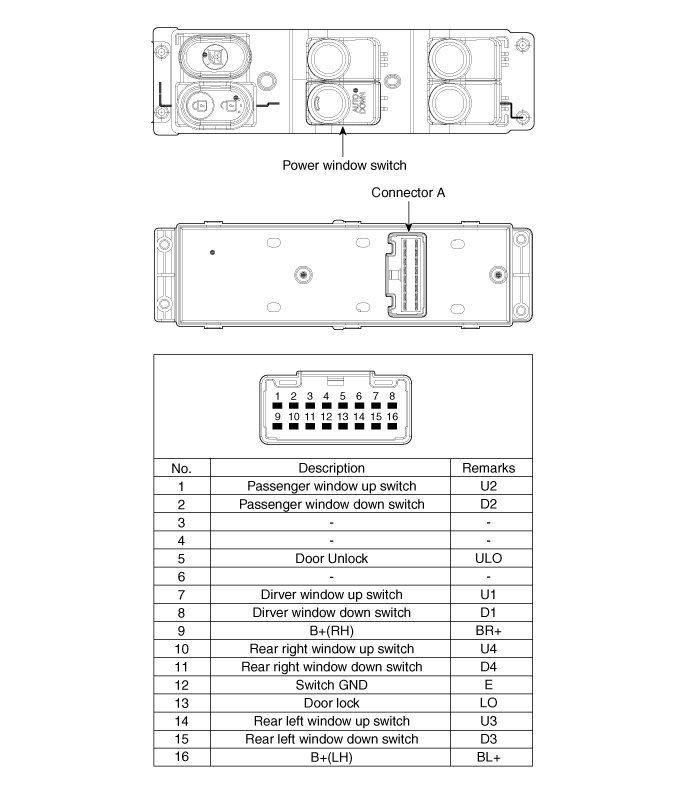

Driver Power Window Switch (1)





Driver Power Window Switch(2)

[Auto Down]

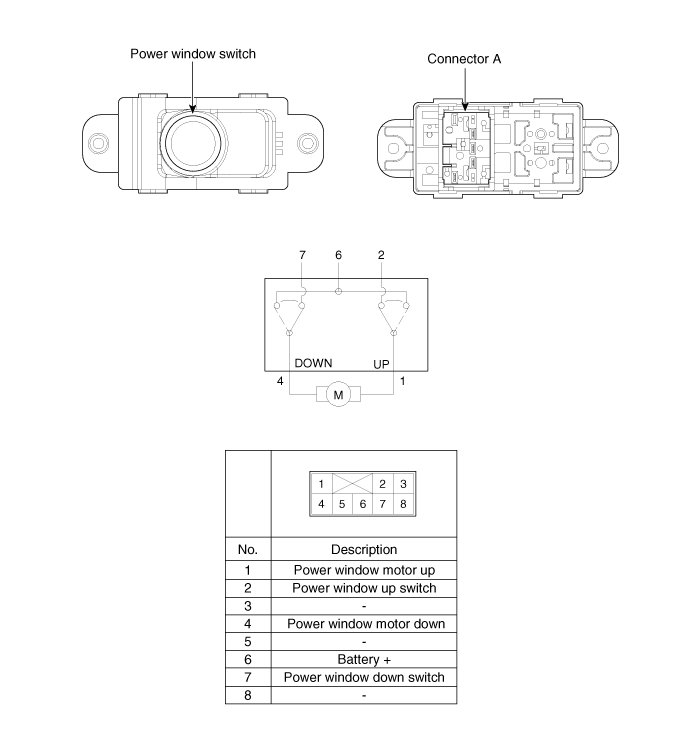

Passenger and Rear Power Window Switch
