Repair Procedures

Inspection

1. The DDM inputs can be checked using the GDS.
2. To check the input value of door lock switch, select option "IPM".
3. Select option "DDM (Driver Door Module)".
4. Select option "Input/Output monitoring".

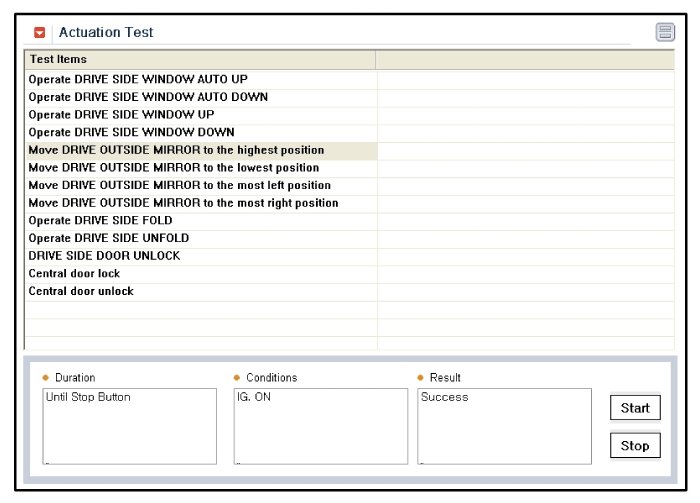

5. To check the input value of door lock switch in force mode, select option "ACTUATION TEST".






Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the front door trim panel.

3. Disconnect the power window switch module connector (A) from the wiring harness.




4. Remove the power window switch module (B) from the door trim after loosening the mounting screws.

Installation

1. Install the power window switch module.
2. Install the door trim panel after reconnecting the relevant connectors

NOTE:
- Make sure that the power window switch module connectors are plugged properly.
- Check that the power window switch and door lock switch operate normally.
