Components and Components Location: Components

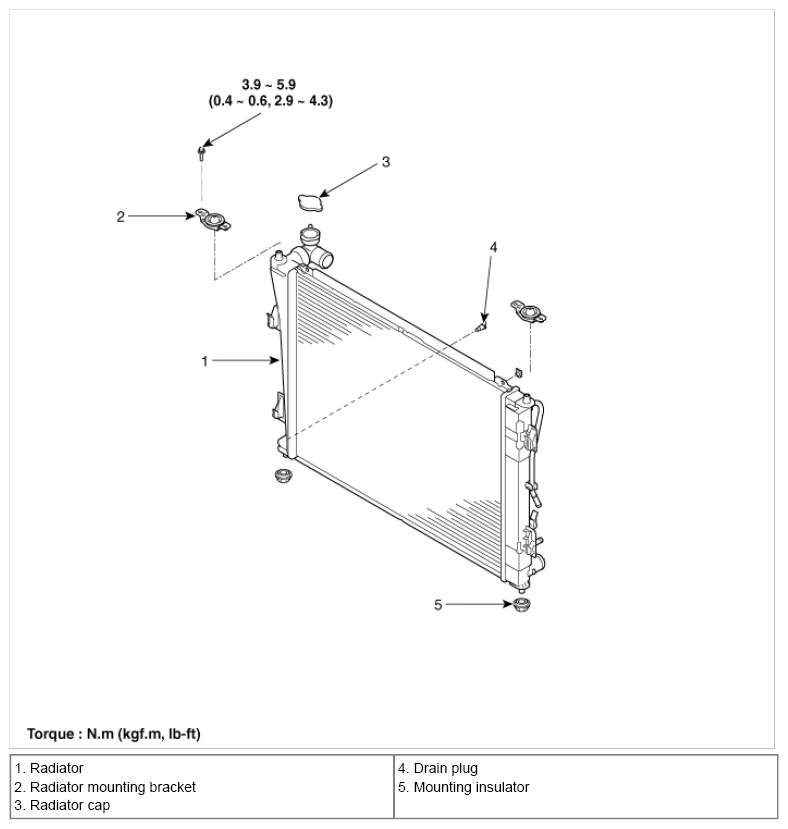

Fig 1: Radiator, Mounting Bracket, Cap, Drain Plug And Mounting Insulator With Torque Specifications
G08809346Courtesy of HYUNDAI MOTOR AMERICA
