Repair Procedures: Installation

Install the CVVT assembly.
Tightening torque:

64.7 ~ 76.5N.m (6.6 ~ 7.8kgf.m, 47.7 ~ 56.4lb-ft)

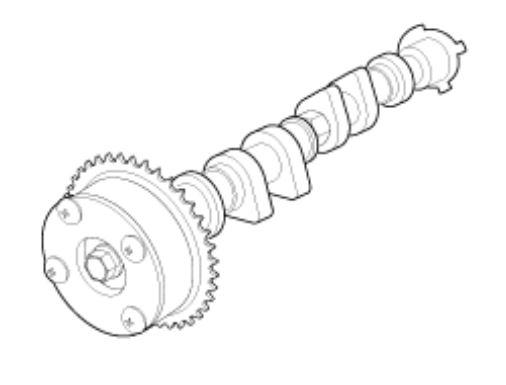

Fig 1: Identifying CVVT Assembly
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Install camshaft-inlet to dowel pin of CVVT assembly.
  At this time, attend not to be installed to oil hole of camshaft-inlet.
- Hold the hexagonal head wrench portion of the camshaft with a vise, and install the bolt and CVVT assembly.
- Do not rotate CVVT assembly when camshaft is installed to dowel pin of CVVT assembly.

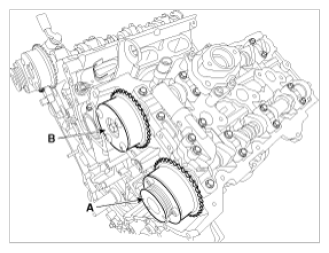

1. A: LH exhaust CVVT
2. B: LH intake CVVT

  Fig 2: Identifying LH Intake And Exhaust CVVT
  Courtesy of HYUNDAI MOTOR AMERICA

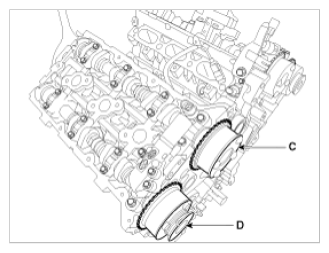

3. C: RH intake CVVT
4. D: RH exhaust CVVT

  Fig 3: Identifying RH Intake And Exhaust CVVT
  Courtesy of HYUNDAI MOTOR AMERICA

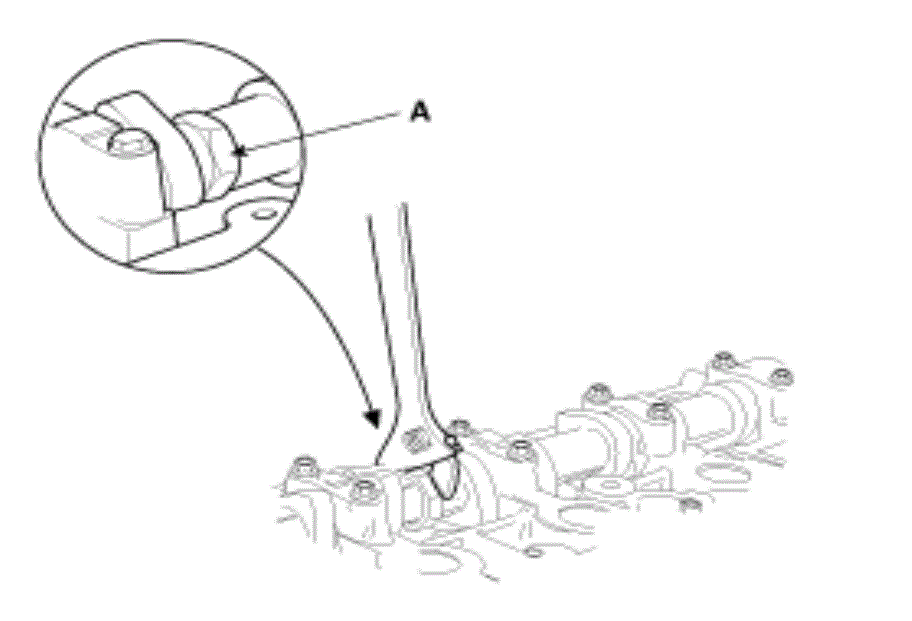

  NOTE: When installing the CVVT assembly bolt, prevent the camshaft from rotating by using a wrench at position A.

  Fig 4: Preventing Camshaft Rotation Using Wrench
  Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain.
(Refer to "TIMING CHAIN ")
