Repair Procedures: Disassembly

  1. Under the condition of fixed strut (A) on the SST (09546-26000), remove the front strut self-locking nut (B).

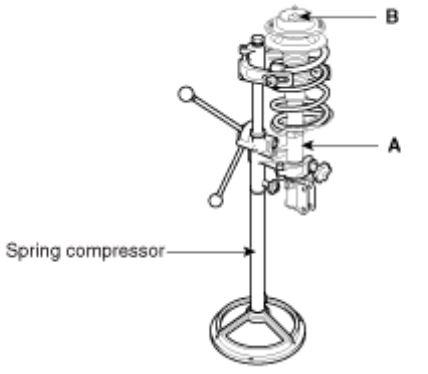

    Fig 1: Removing Front Strut Self-Locking Nut Using Special Tool
    G08810078Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly
