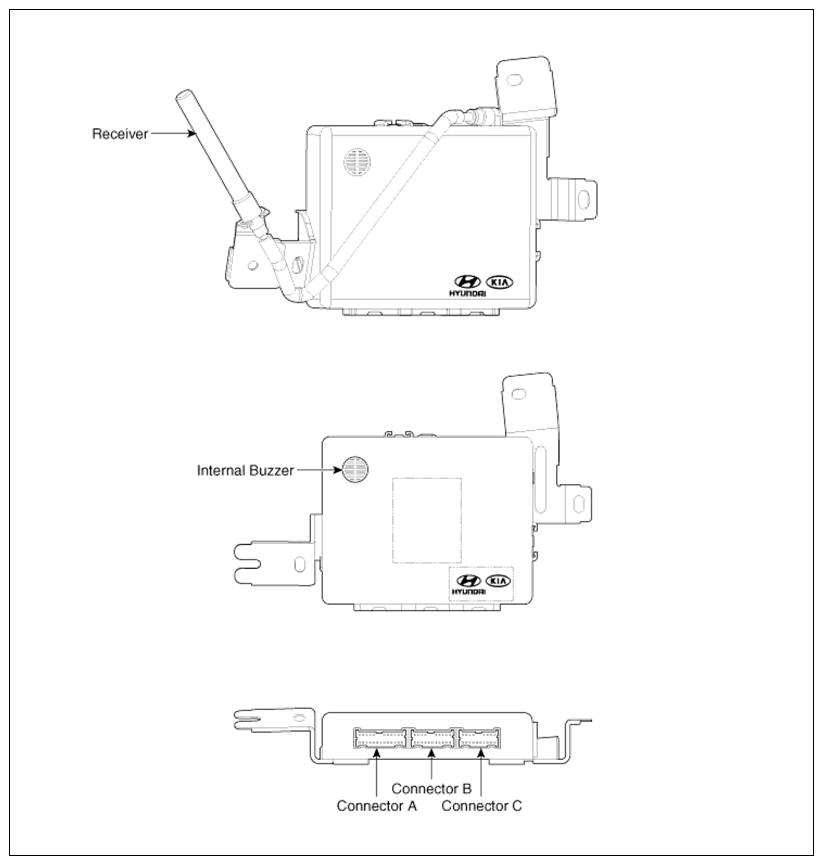

Components and Components Location: Components
* Internal Buzzer: Rear parking assist system buzzer
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Battery | LIN communication (RPAS) | Safety power window Enable hi |
| 2 | IGN 1 | - | Navigation wakeup signal |
| 3 | IGN 2 | Front for lamp switch | Key hole illumination |
| 4 | Brake switch | Side airbag option | Interior lamp |
| 5 | MIST switch | - | Puddle lamp |
| 6 | Crash Unlock | - | Key solenoid |
| 7 | Head lamp low switch | AV TAIL | ATM solenoid |
| 8 | Head lamp high switch | CAN HIGH | - |
| 9 | - | CAN LOW | - |
| 10 | - | Autolight ground | Security indicator |
| 11 | - | Autolight signal | - |
| 12 | - | Autolight power | - |
| 13 | ACC | Autolight switch | - |
| 14 | - | K-LINE communication | Wiper relay |
| 15 | - | Rear glass heater switch | - |
| 16 | R position | Passenger seat belt indicator LED | - |
| 17 | Washer switch | - | - |
| 18 | Wiper INT switch | - | Power ground |
| 19 | - | Head lam plow signal | |
| 20 | Wiper INT volume | - | |
| 21 | Key IN switch | ||
| 22 | Tail lamp switch | ||
| 23 | Key interlock switch | ||
| 24 | Signal ground |
BCM INPUT SIGNAL SPECIFICATION
BCM INPUT SIGNAL SPECIFICATION
| No | Signal Name | Description | ON/OFF LEVEL (V) | Remark |
|---|---|---|---|---|
| A01 | L_B+ | ON = BAT | 9V~16V | |
| A02 | L_IGN1 | ON = BAT (IGN KEY=ON or Start Position) |
7V or more/4V or less | |
| A03 | L_IGN2 | ON = BAT (IGN KEY=ON |
7V or more/4V or less | |
| A04 | L_Brake SW | ON = GND | 7V or more/4V or less | |
| A05 | L_MIST SW | ON = BAT | 7V or more/4V or less | |
| A06 | L_CRASH UNLOCK INPUT (PWM) | - | - | PWM |
| A07 | L_HeadLamp LOW SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| A08 | L_HeadLamp HIGH SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| A13 | L_ACC | ON = BAT | 7V or more/4V or less | |
| A16 | L_INH'R' SW | ON = BAT | 7V or more/4V or less | |
| A17 | L_WASHER SW | ON = BAT | 7V or more/4V or less | |
| A18 | L_WIPER INT SW | ON = BAT | 7V or more/4V or less | |
| A20 | A_Wiper Int Volume | - | - | A/D |
| A21 | L_KEY IN SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| A22 | L_TAIL LAMP SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| A23 | L_KEY INTER LOCK SW | ON = OPEN | 2V or less/OPEN (Reference value: 4V or more) |
|
| B01 | LIN (RPAS) | - | - | Communication |
| B03 | L_FRONT FOG Lamp SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| B04 | L_SIDE AIR OPT | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| B08 | CAN (HIGH) | - | Communication | |
| B09 | CAN (LOW) | - | Communication | |
| B11 | A_AUTO LIGHT SIGNAL | - | - | A/D |
| B13 | L_AUTO LIGHT SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
|
| B14 | DIAGNOSIS (K-Line) | - | - | Communication |
| B15 | L_DEFOGGER SW | ON = GND | 2V or less/OPEN (Reference value: 4V or more) |
