Components and Components Location: Components

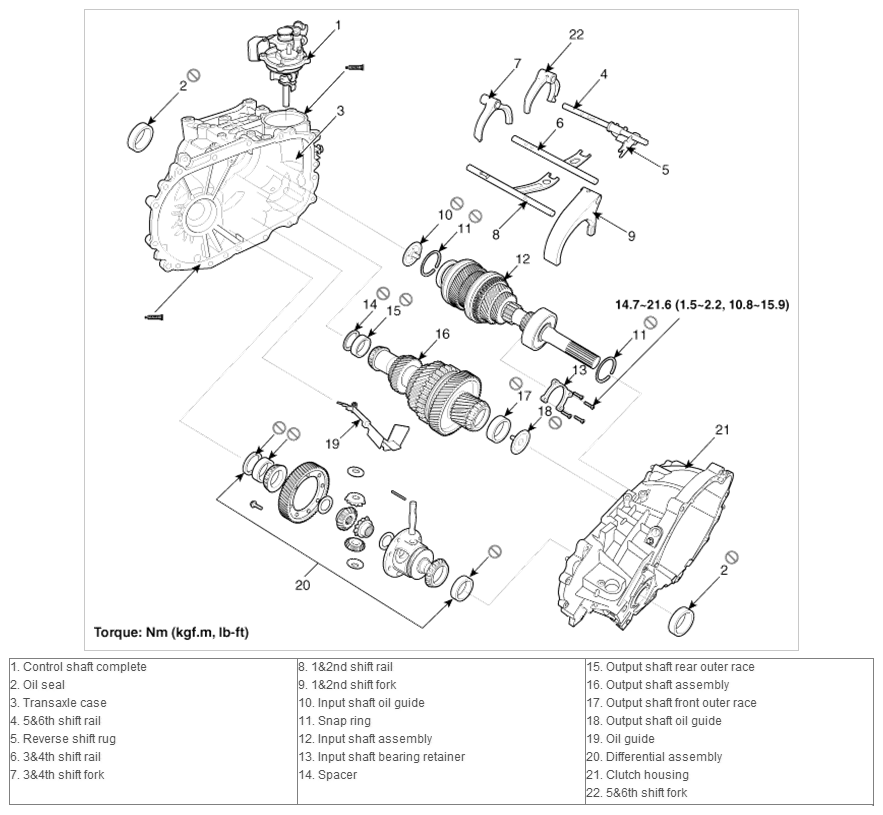

Fig 1: Manual Transaxle Components With Torque Specification
G10234943Courtesy of HYUNDAI MOTOR AMERICA
