Repair procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Lift the vehicle.
Disconnect the canister close valve connector (A).
Disconnect the ventilation hose (B).
Remove the fuel tank air filter after removing the mounting bolts (C).

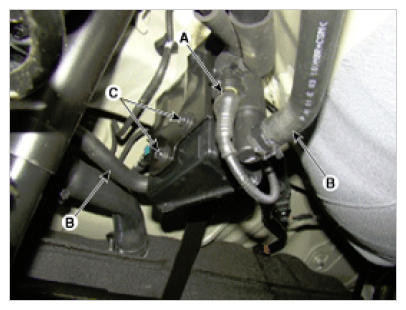

Fig 1: Identifying Canister Close Valve Connector, Ventilation Hose And Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.

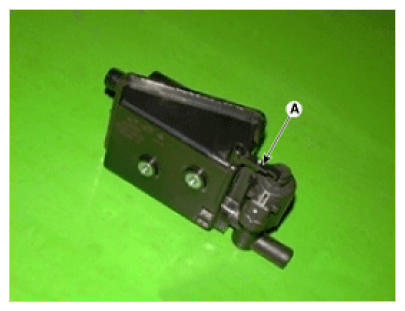

Fig 2: Identifying Canister Close Valve And Lever
Courtesy of HYUNDAI MOTOR AMERICA

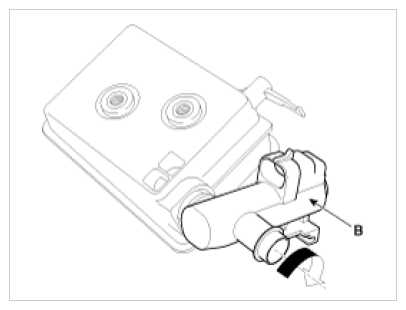

Fig 3: Removing Canister Close Valve From Fuel Tank Air Filter
Courtesy of HYUNDAI MOTOR AMERICA
Install a new fuel tank air filter in accordance with the reverse order.
