General Information - Engine Electrical System: Specifications: Notes
IGNITION SYSTEM SPECIFICATION
| Items | Specification | |
|---|---|---|
| Ignition coil | Primary resistance | 0.75 Ω ± 15 % |
| Secondary resistance | 5.9 kΩ ± 15 % | |
| Spark plugs | Type | SILZKR7B11 |
| Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) | |
| Condenser | Rated voltage | DC 250 V |
| Capacitance [at 1 KHz] | 0.47 μF | |
STARTING SYSTEM SPECIFICATION
| Items | Specification | ||
|---|---|---|---|
| Starter | Rated voltage | 12 V, 1.2 kW | |
| No. of pinion teeth | 11 | ||
| No-load characteristics | Voltage | 11 V | |
| Ampere | 70 A, MAX | ||
| Speed | 2, 400 RPM, MIN | ||
CHARGING SYSTEM SPECIFICATION

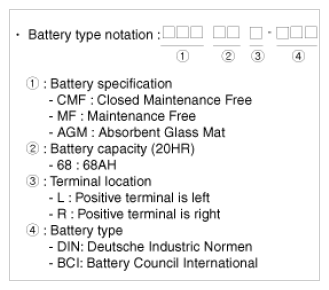

| Items | Specification | ||
|---|---|---|---|
| Alternator | Rated voltage and current | 13.5 V, 90 A | |
| Speed in use | 1, 000 ~ 18, 000 RPM | ||
| Voltage regulator | IC Regulator built-in type, Alternator management system | ||
| Regulator setting voltage | External mode | ECU control | |
| Internal mode | 14.55 ± 0.3 V | ||
| Temperature compensation | External mode | ECU control | |
| Internal mode | -3.5 ± 2 mV/°C | ||
| Battery | Type | CMF 60L - DIN | |
| Cold cranking amperage at -18°C (0°F) | 550A (SAE) 440A (EN) |
||
| Capacity (20HR) | 60Ah | ||
| Reserve capacity | 92 min | ||
| Specific gravity at 25°C (77°F) | 1.280 ± 0.01 | ||
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
