Components and Components Location: Components

2013

Fig 1: Starting System Components
G10234433Courtesy of HYUNDAI MOTOR AMERICA

2014

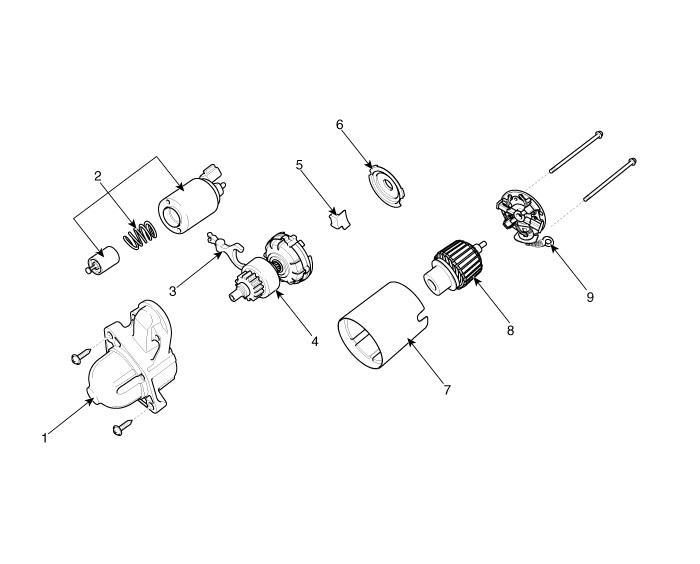

G00558390
1. Front bracket assembly 6. Gasket sheet
2. Magnet switch assembly 7. Yoke assembly
3. Lever 8. Armature assembly
4. Reducer assembly 9. Brush holder assembly
5. Lever stop -
