Front Fender: Service and Repair

Replacement

NOTE:
- When removing and installing the hood, an assistant is necessary
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

1. Loosen the mud guard mounting screws.




2. Loosen the mounting screws and clips, remove the side sill garnish.
3. Loosen the bumper side mounting screw, disconnect the side's bumper (A).




4. Loosen the mounting screws, remove the front bumper side mounting bracket.

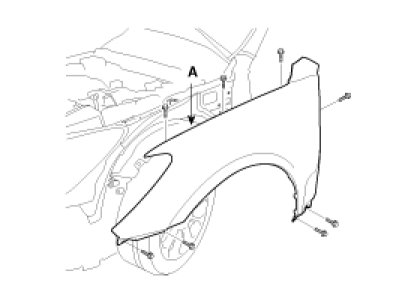

5. Loosen the fender mounting bolts, remove the fender (A).




6. Installation is the reverse of removal.
