Repair Procedures: Removal

Disconnect (-) terminal from the battery.
Remove the console assembly. (Refer to "CONSOLE ")

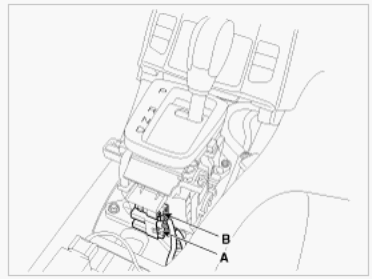

Disconnect the sport mode connector (A) and indicator connector (B).

Fig 1: Identifying Sport Mode Connector & Indicator Connector
Courtesy of HYUNDAI MOTOR AMERICA
Take off the clip (A) and remove the shift cable assembly (C) by pressing the guide (B).

Fig 2: Identifying Shift Cable Assembly, Guide & Clip
Courtesy of HYUNDAI MOTOR AMERICA

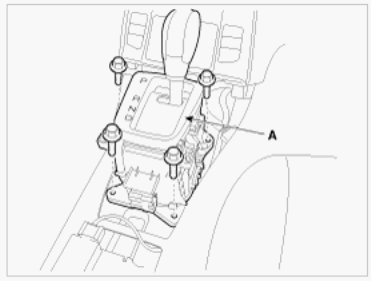

Remove the shift lever assembly (A) by removing the bolts.
Tightening torque:

9 ~ 14 N.m (0.9 ~ 1.4 kgf.m, 6.51 ~ 10.12 lb-ft)

Fig 3: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR AMERICA
