Hyundai
>>
2013
>>
Santa Fe GLS, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Tailgate Module
>>
Power Liftgate Unit
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

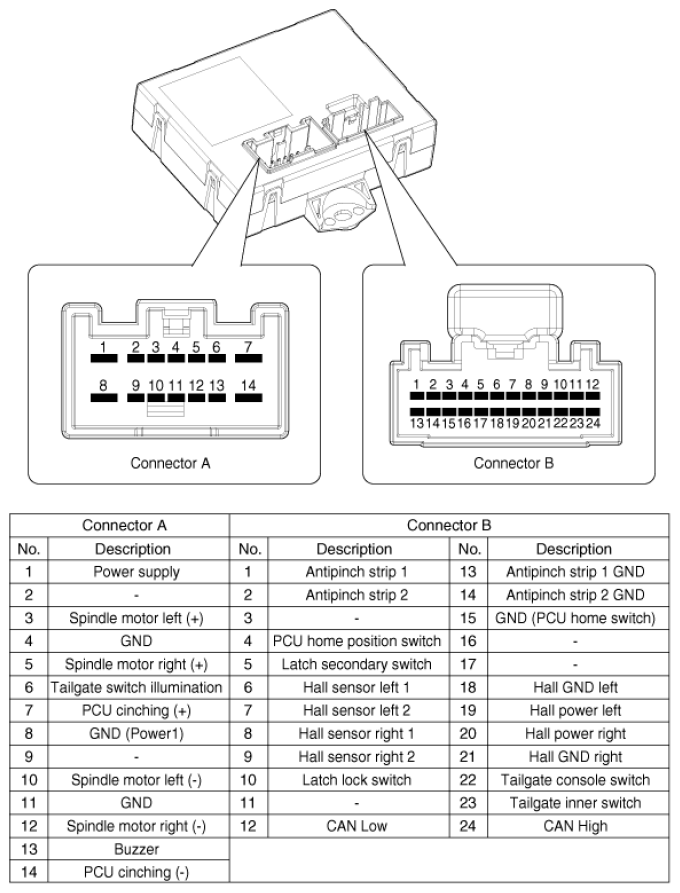

Fig 1: Power Liftgate Unit - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
