Block Diagram

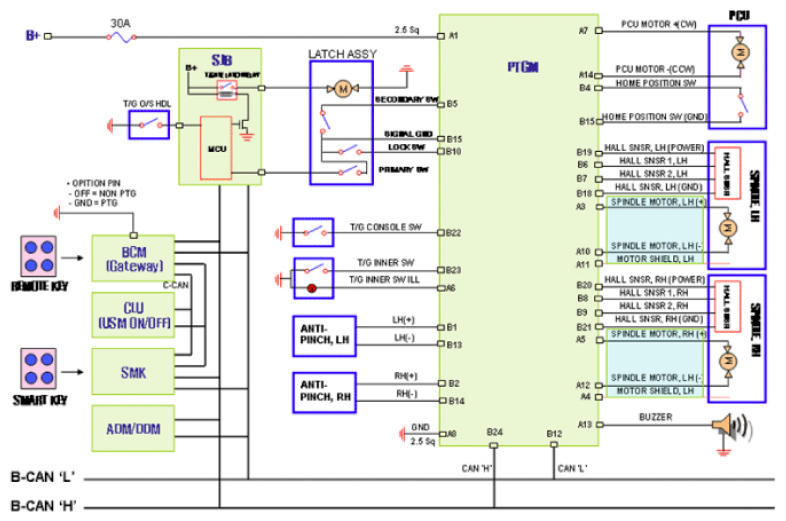

Fig 1: Power liftgate Module Block Diagram
G09268755Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Power liftgate Module Terminals Condition Chart
G09268756Courtesy of HYUNDAI MOTOR AMERICA
