Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    Refer to FRONT DOOR TRIM .

  3. Remove the power window switch assembly (A) after loosening the mounting screws (5EA).

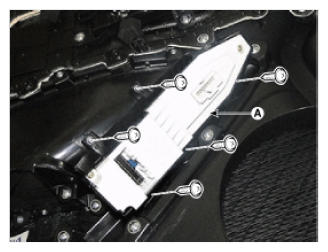

    Fig 1: Identifying Power Window Switch Assembly Mounting Screws (5EA)
    G09366370Courtesy of HYUNDAI MOTOR AMERICA
