Components And Components Location: Components

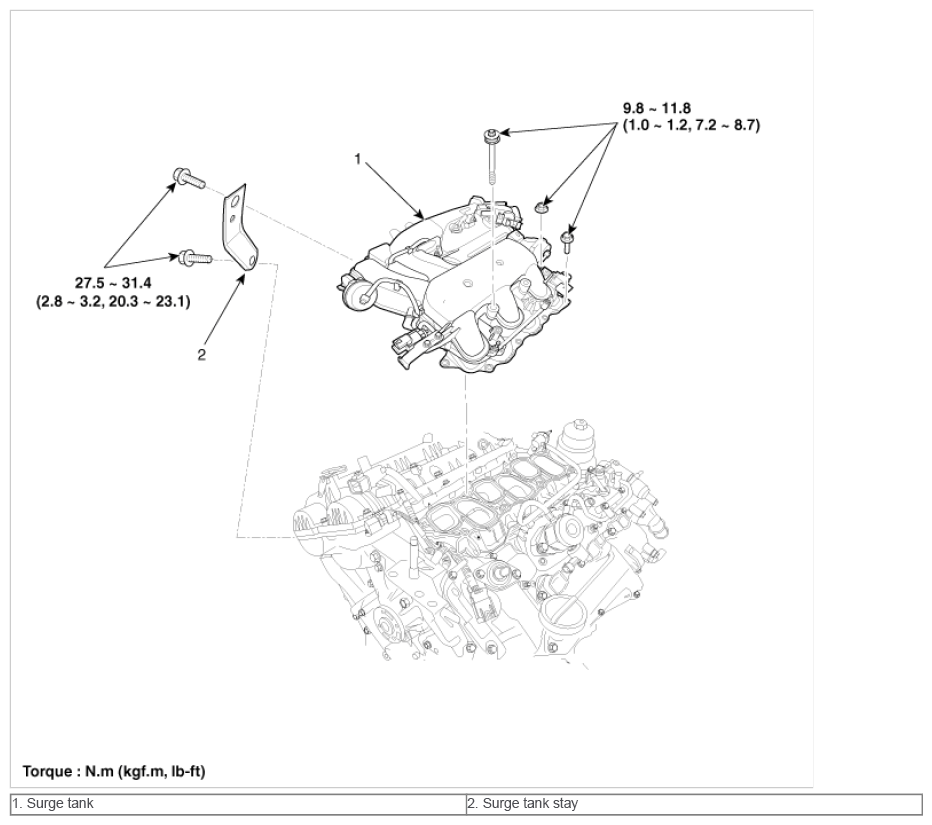

Fig 1: Surge Tank And Surge Tank Stay And Mounting Bolts With Torque Specification
G09267342Courtesy of HYUNDAI MOTOR AMERICA
