Intake Manifold

Intake manifold (A) after disconnecting the vacuum hoses.

Tightening torque : 18.6 - 23.5N.m (1.9 - 2.4kgf.m, 13.7 - 17.4lb-ft)

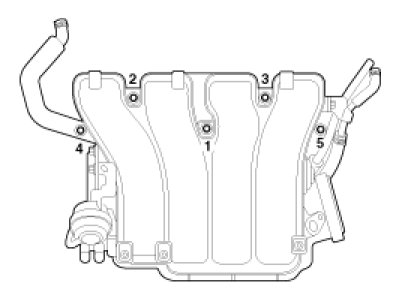

When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.
