Timing Cover

Timing chain cover

The dowel pins on the cylinder block and holes on the timing chain cover should be used as a reference in order to assemble the timing chain cover to be in exact position.

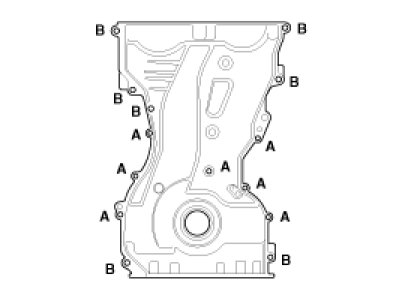

Tightening torque:
Bolts A (M6•25) : 7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)
Bolts B (M8•28) : 18.6 - 22.5N.m (1.9 - 2.3kgf.m, 13.7 - 16.6lb-ft)






CAUTION: The engine starting or pressure tests should not be performed within 30 minutes after the timing chain cover was assembled.
