Control Module: Diagrams





1. TCM Connector and Terminal Function

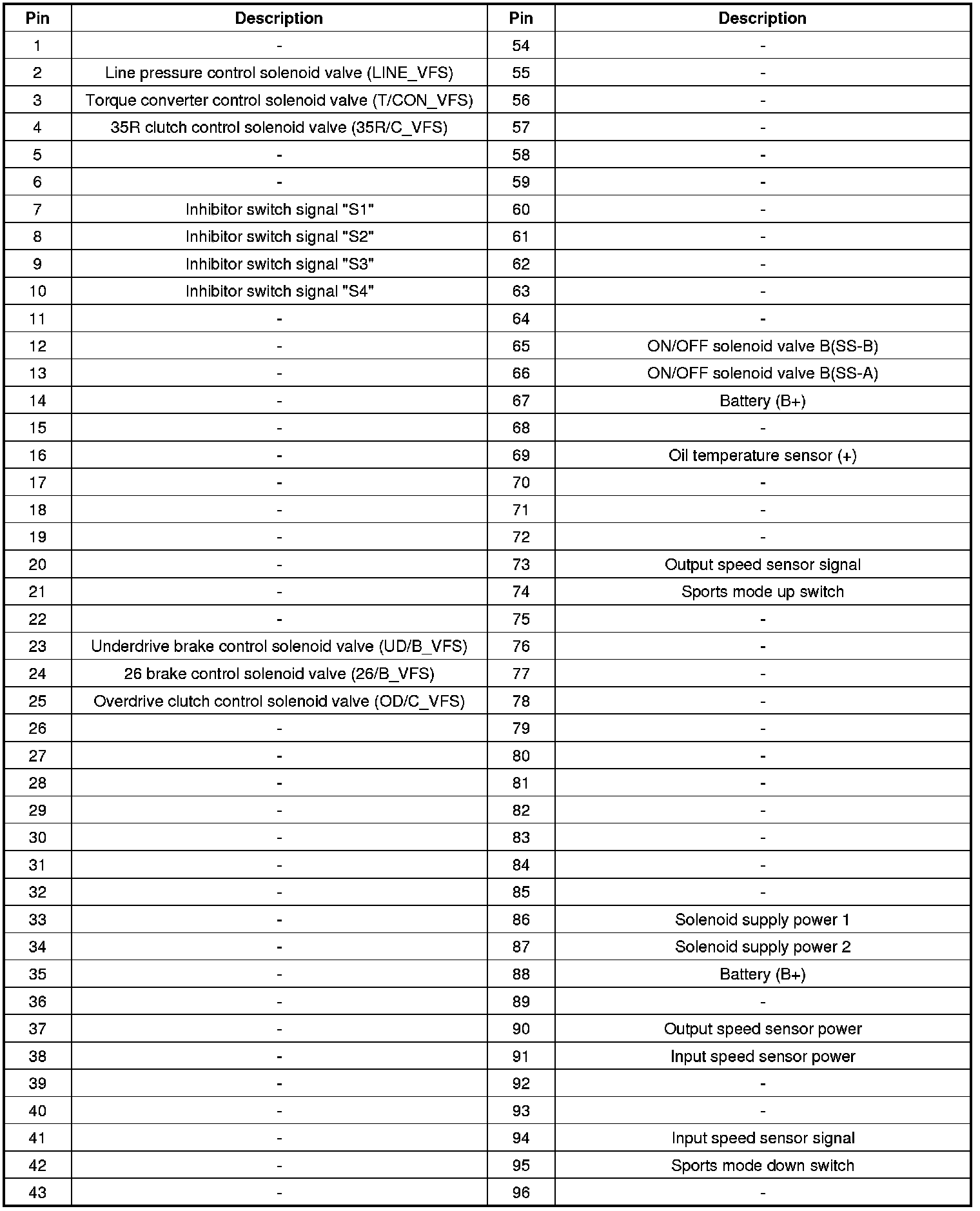

2. TCM Terminal Function

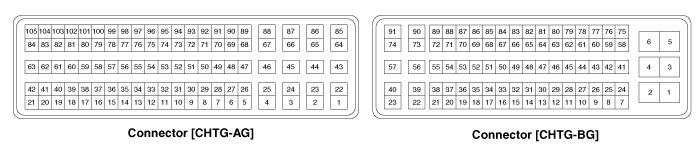

Connector [CHTG-AG]

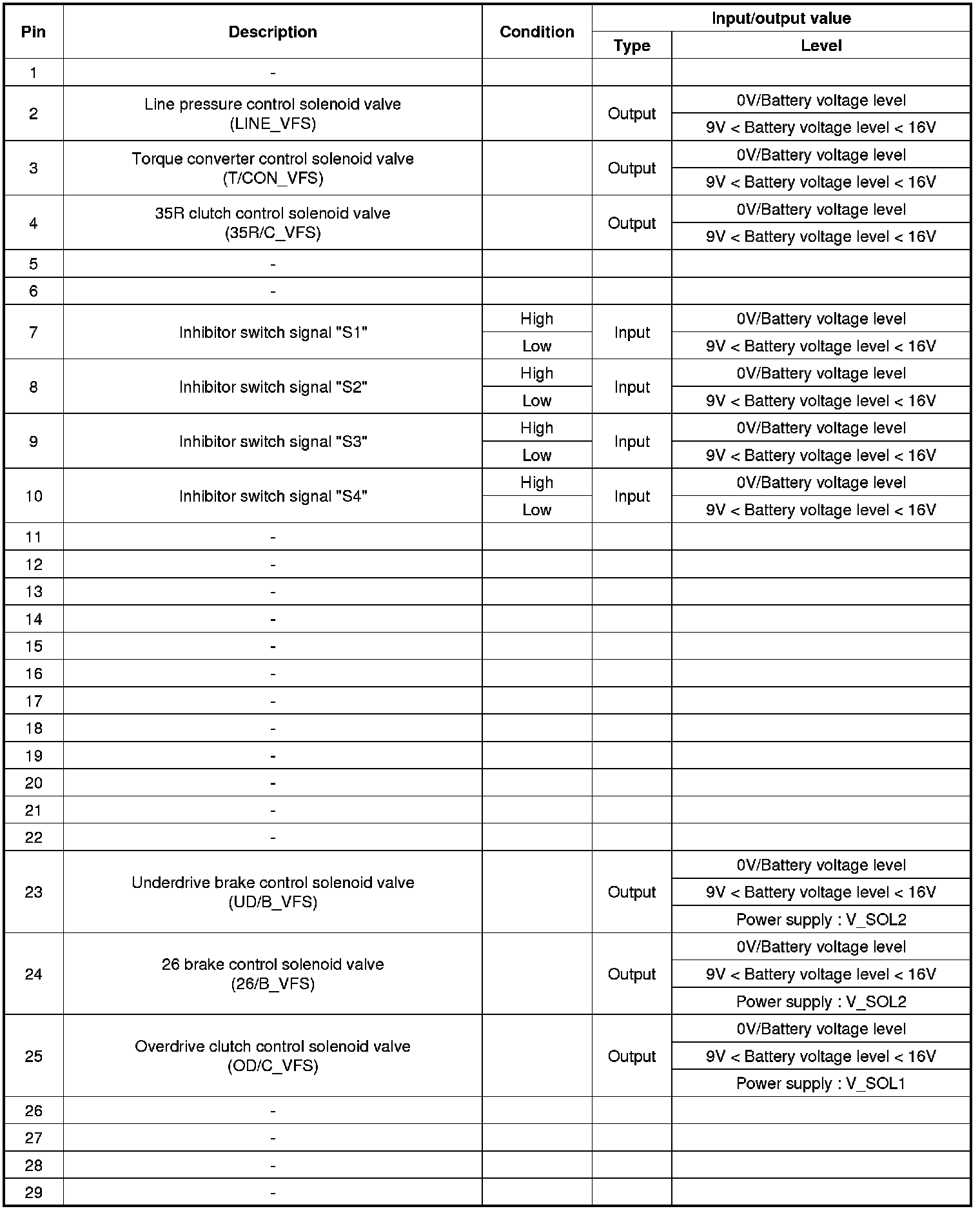

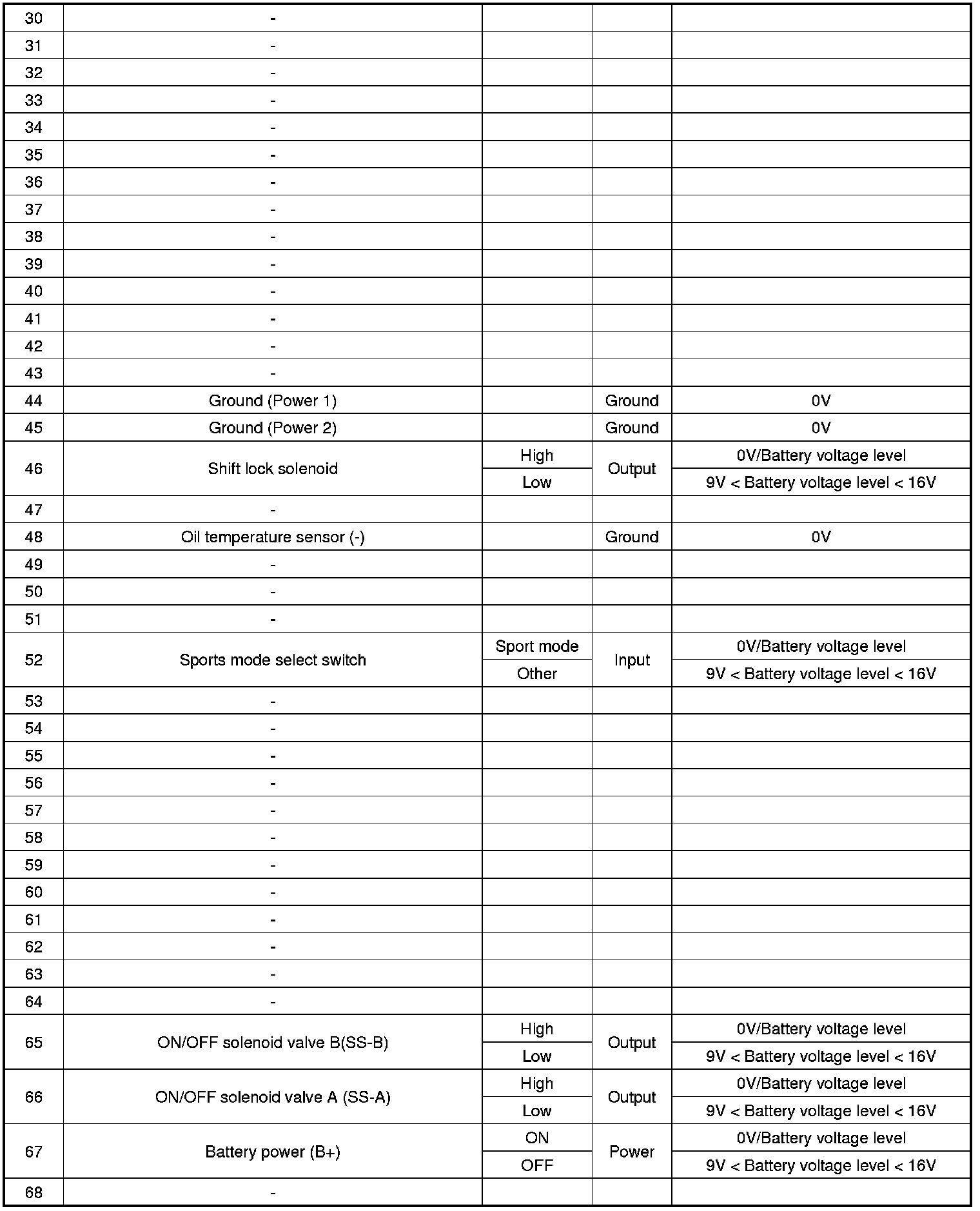

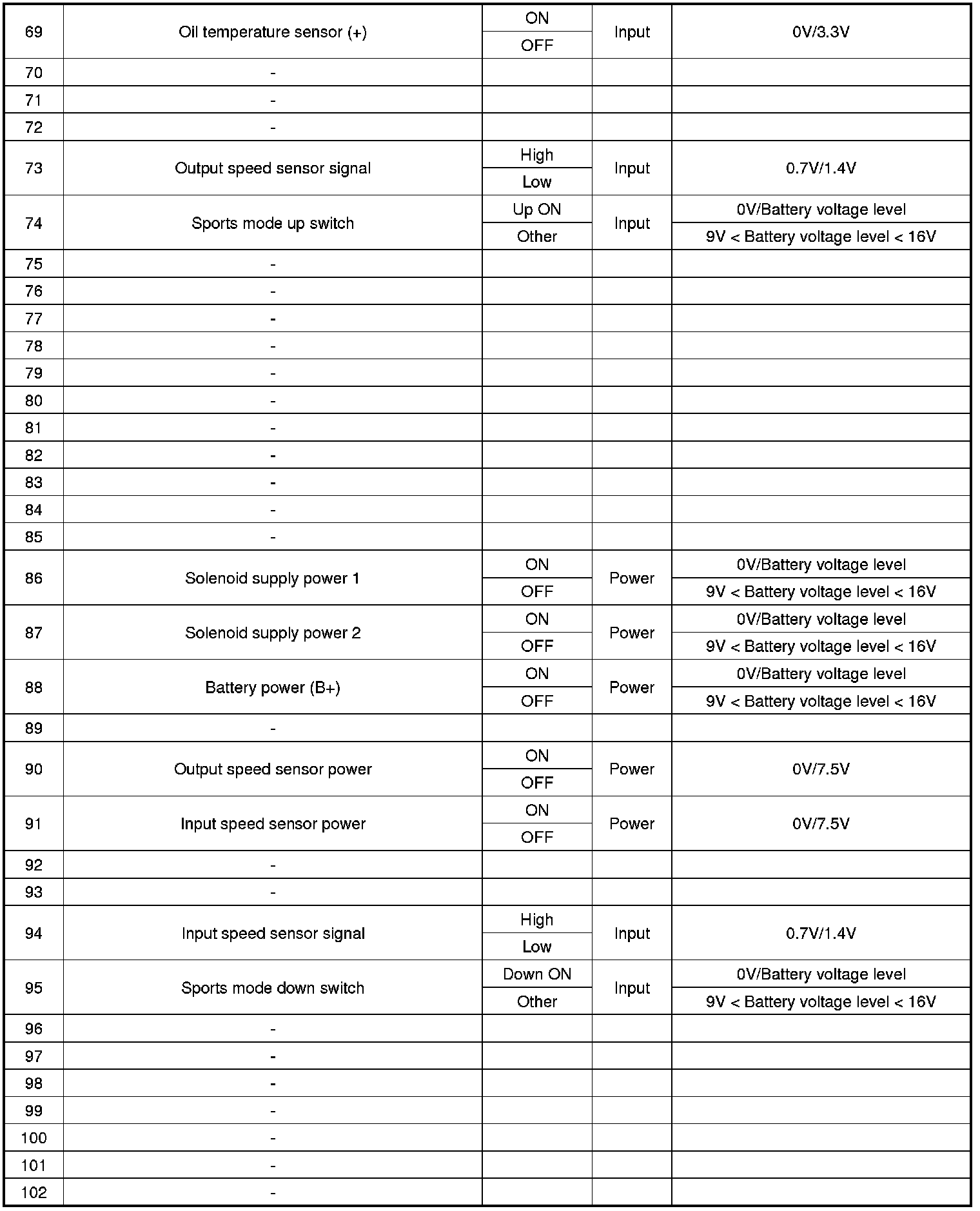

TCM Terminal Input/ Output Signal

Connector [CHTG-AG]

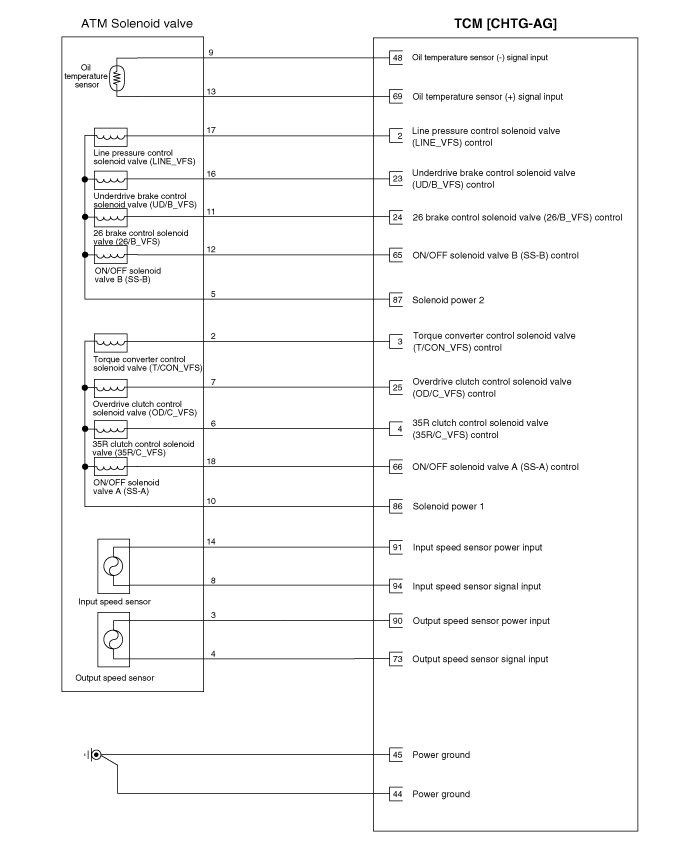

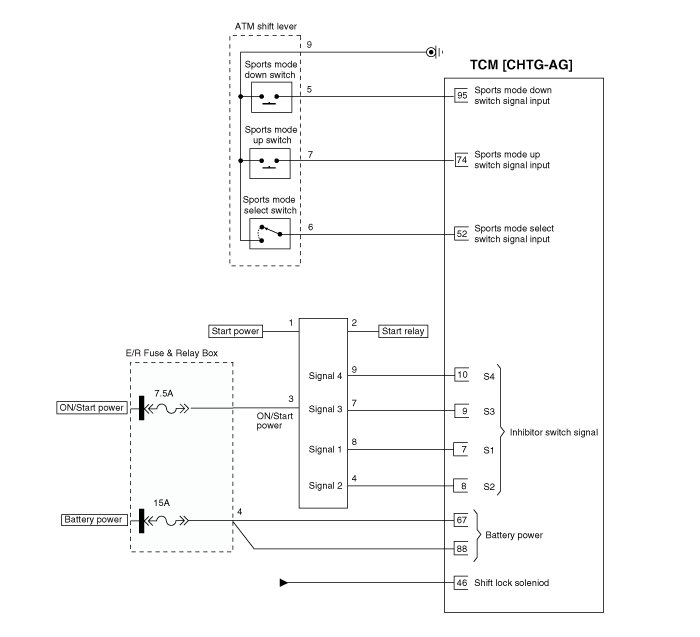

Circuit Diagram
