Components and Components Location: Components

1.6L Turbo

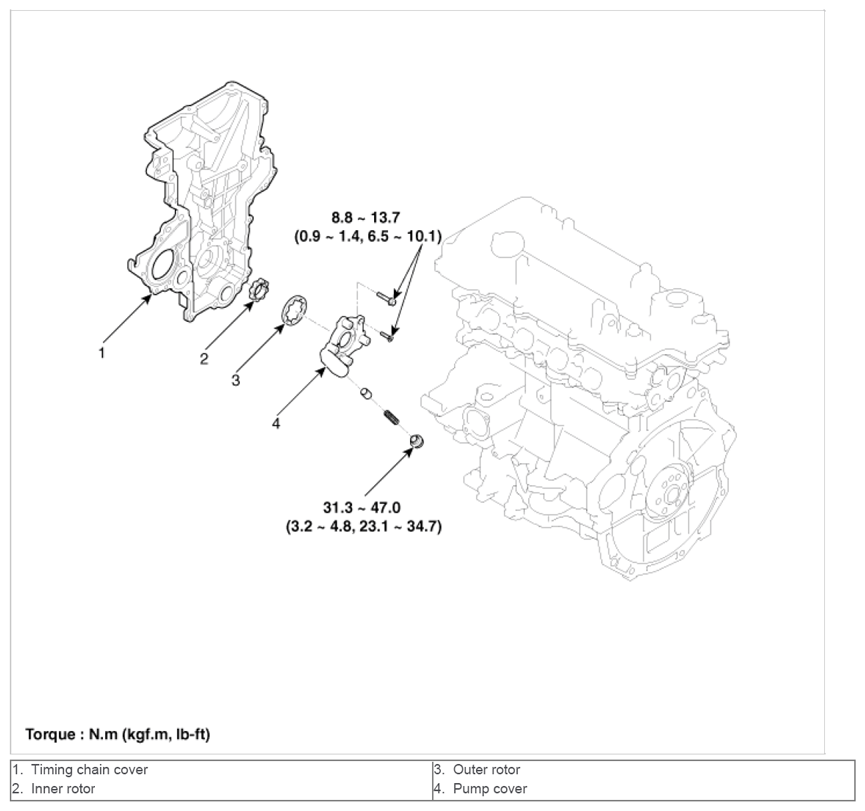

Fig 1: Timing Chain Cover Related Replacement Components With Torque Specifications
G09150178Courtesy of HYUNDAI MOTOR AMERICA

1.6L Non-Turbo

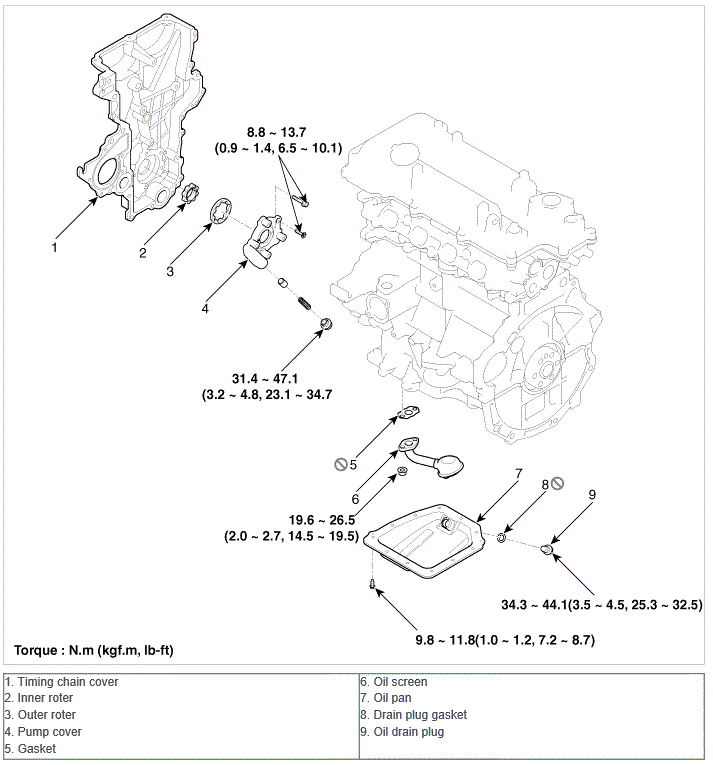

Fig 2: Timing Chain Cover Related Replacement Components With Torque Specifications
G00547394Courtesy of HYUNDAI MOTOR AMERICA
