Repair procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to the "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to the "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening 4 screws.

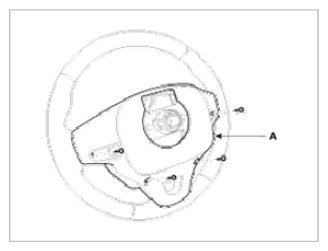

Fig 1: Identifying Steering Wheel Cover And Screws
Courtesy of HYUN
Remove the steering wheel remote control switches connectors.
[LH-Audio/Bluetooth + Voice]

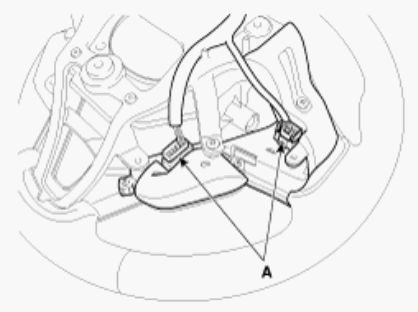

Fig 2: Identifying Steering Wheel Remote Control Switches Connectors (LH-Audio/Bluetooth And Voice)
Courtesy of HYUN

[RH-Cruise/Trip + Reset]

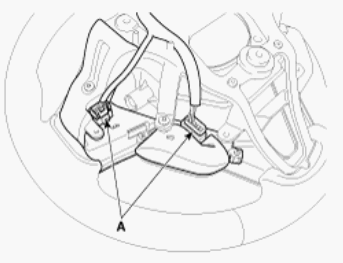

Fig 3: Identifying Steering Wheel Remote Control Switches Connectors (RH-Cruise/Trip And Reset)
Courtesy of HYUN
Remove the wiring and loosen 5 screws.
Remove the steering wheel remote control switch assembly (A).

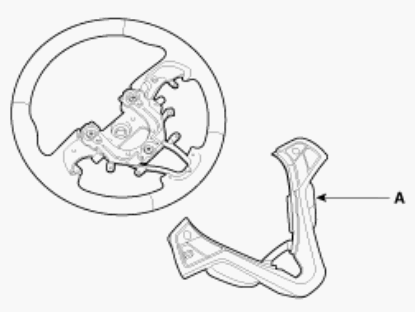

Fig 4: Identifying Steering Wheel Remote Control Switch Assembly
Courtesy of HYUN
Remove the bluetooth switch and the trip switch (A) after loosening the screws.

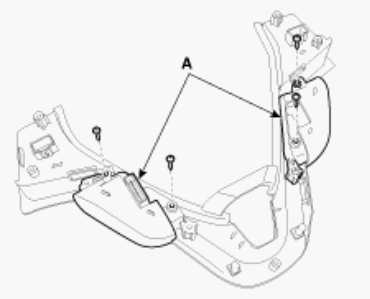

Fig 5: Identifying Bluetooth Switch And Trip Switch And Screws
Courtesy of HYUN
