Components and Components Location: Component: Notes

WARNING: This page is about a different variant/trim than selected.

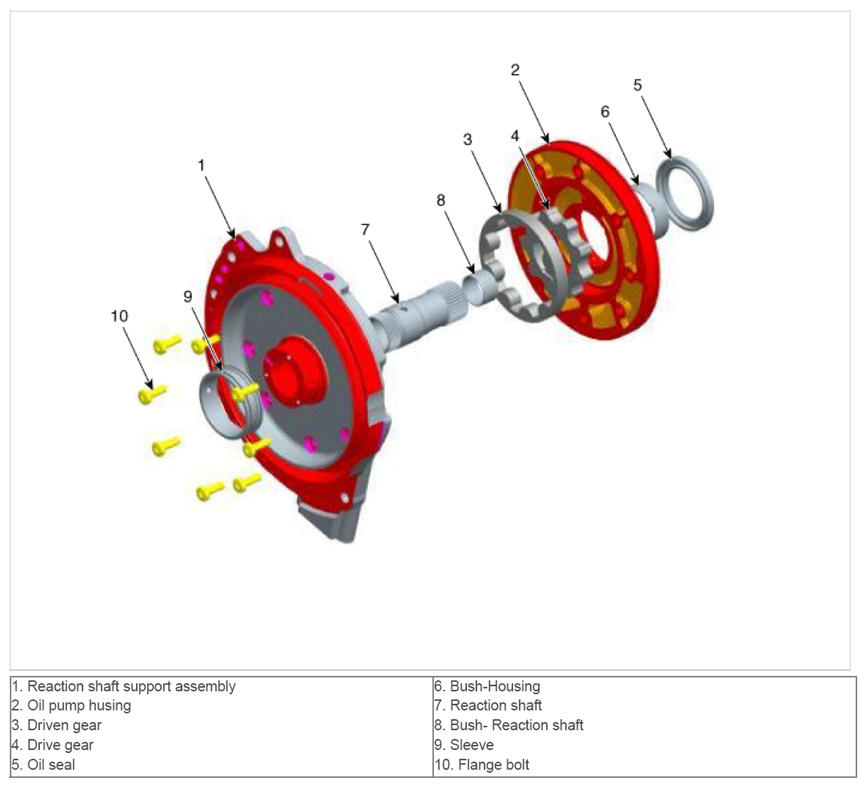

Fig 1: Oil Pump Components
G09150560Courtesy of HYUNDAI MOTOR AMERICA
