Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the waste gate solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the waste gate solenoid valve.
  4. Remove the valve after removing the bolt (C).
  5. Remove the waste gate solenoid valve (D).

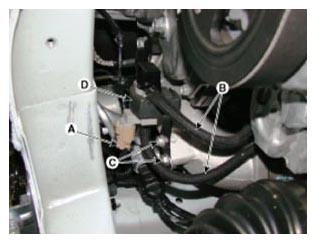

    Fig 1: Waste Gate Solenoid Valve Connector, Vapor Hoses, Waste Gate Solenoid Valve & Bolt
    G09151136Courtesy of HYUNDAI MOTOR AMERICA
