Signal Waveform & Data

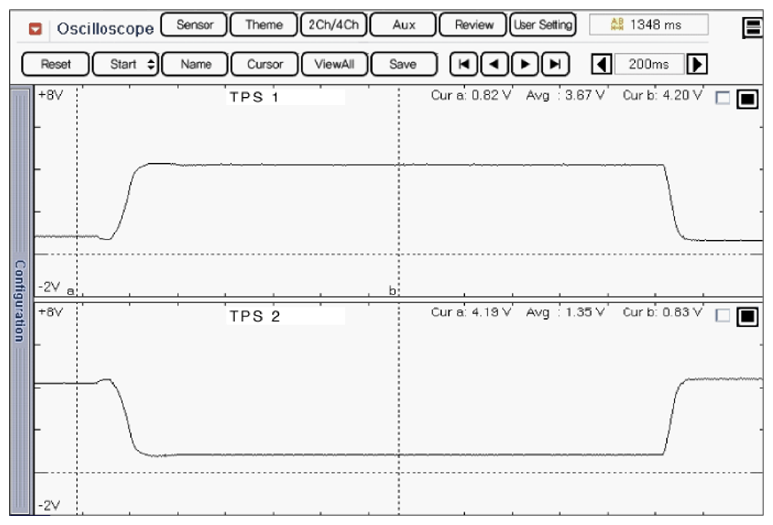

Fig 1: Display - Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
G08802143Courtesy of HYUNDAI MOTOR AMERICA
