Smart Key Code Saving

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

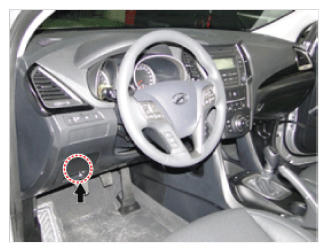

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

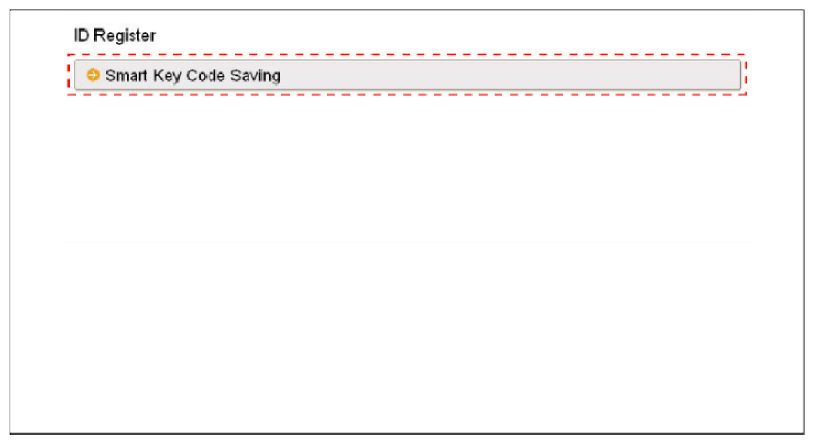

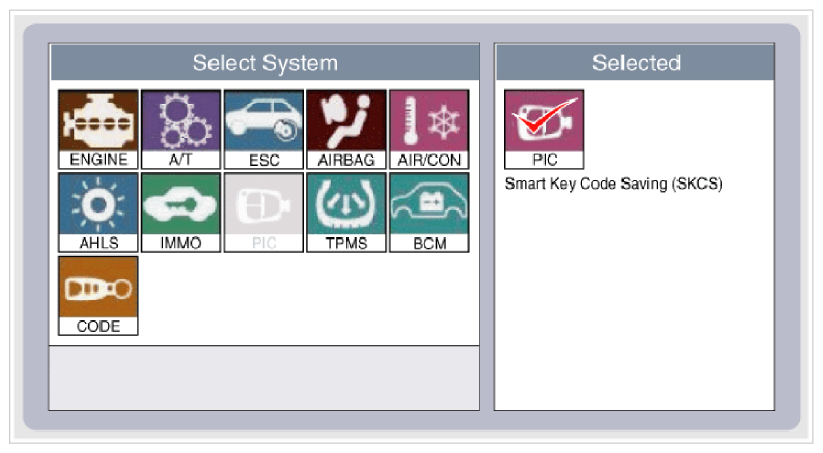

Fig 2: Display - Smart Key Code Saving Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - Smart Key Code Saving Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

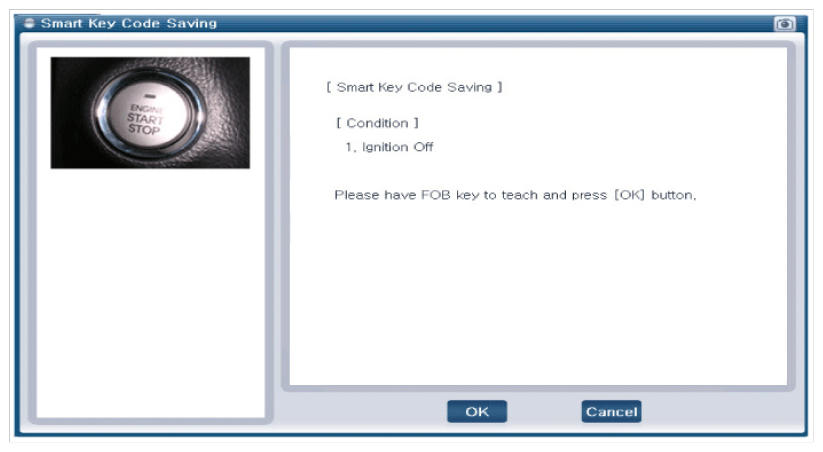

Fig 4: Display - Smart Key Teaching Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

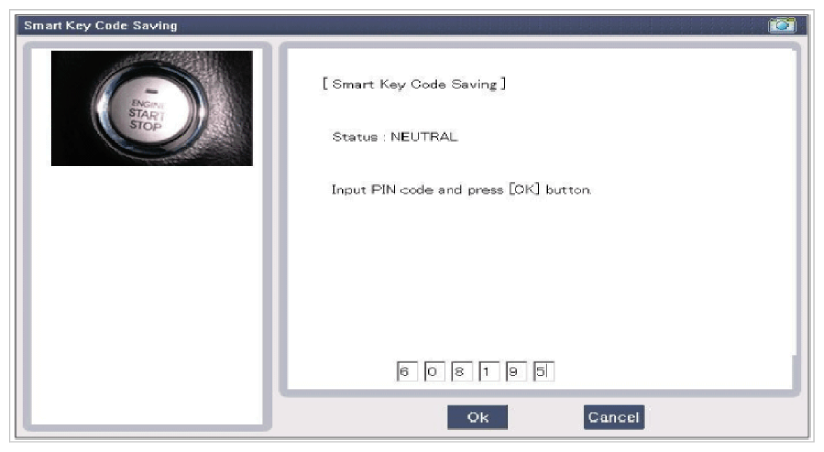

Fig 5: Display - Smart Key Teaching Pin Code Enter Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

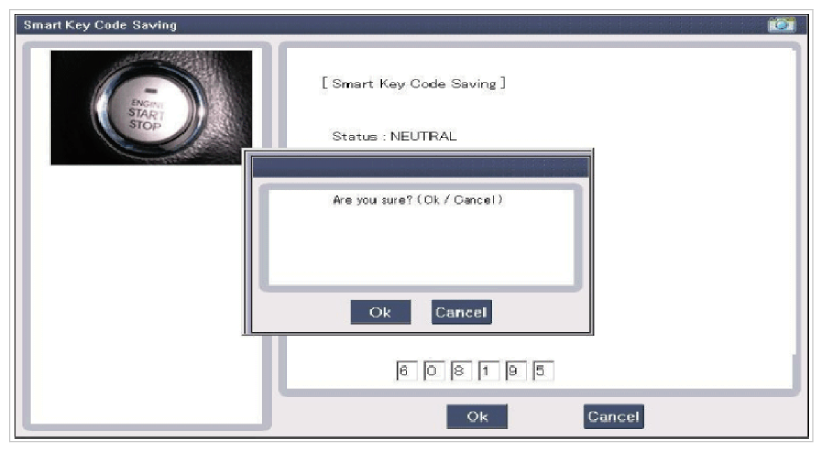

Fig 6: Display - Smart Key Teaching Pin Code Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

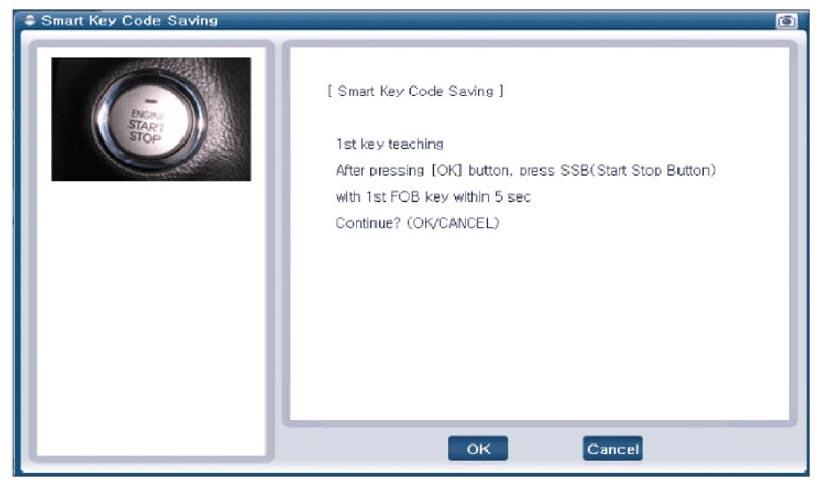

Fig 7: Display - First Key Teaching Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 8: Display - First Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

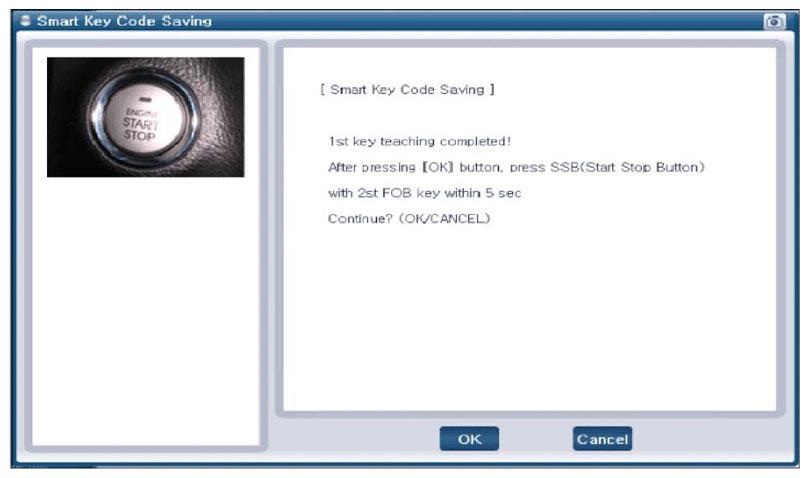

Fig 9: Display - First Key Teaching Completed Screen (With 2nd Fob Key)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

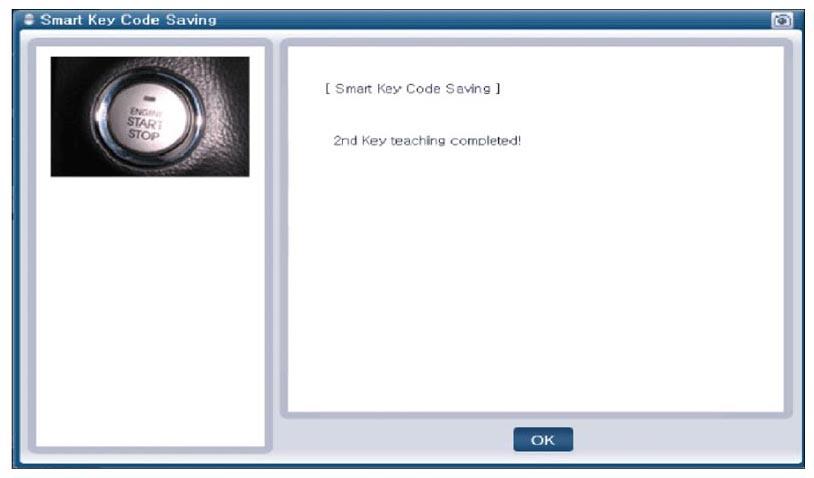

Fig 10: Display - Second Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as below when key teaching process is completed.

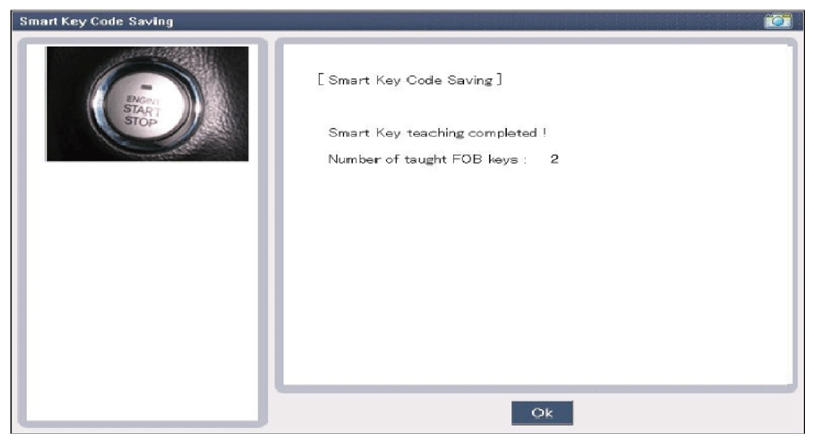

Fig 11: Display - Smart Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
