Monitor GDS Data

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).

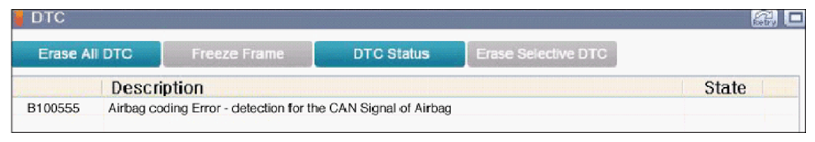

Fig 1: Display - DTC Code Screen (Airbag Coding Error)
Courtesy of HYUNDAI MOTOR AMERICA
Is the same DTC occurred again?
YES
- After checking installed option on the real vehicle firmly, perform "CLU Variant Coding" procedure. And then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault is intermittent caused by poor contact in the SRSCM's connector or was repaired and CLU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

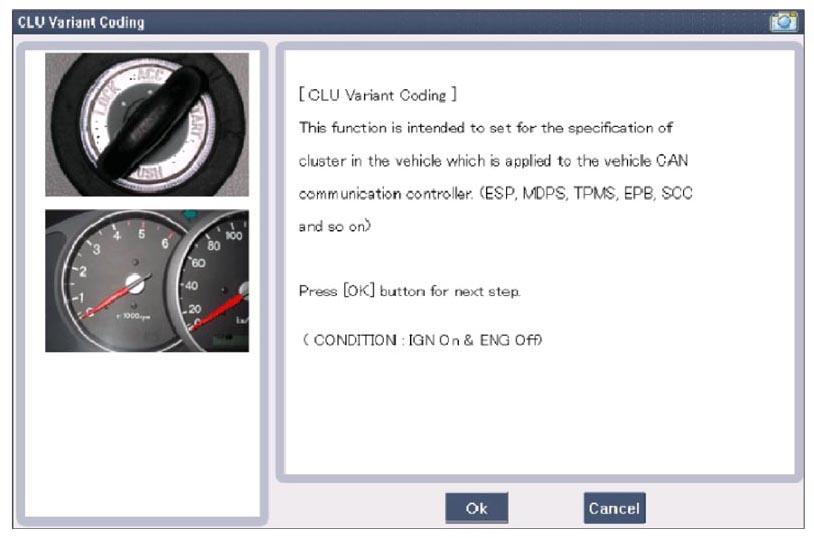

  Fig 2: Display - CLU Variant Coding Screen
  Courtesy of HYUNDAI MOTOR AMERICA
