Components and Components Location: Components

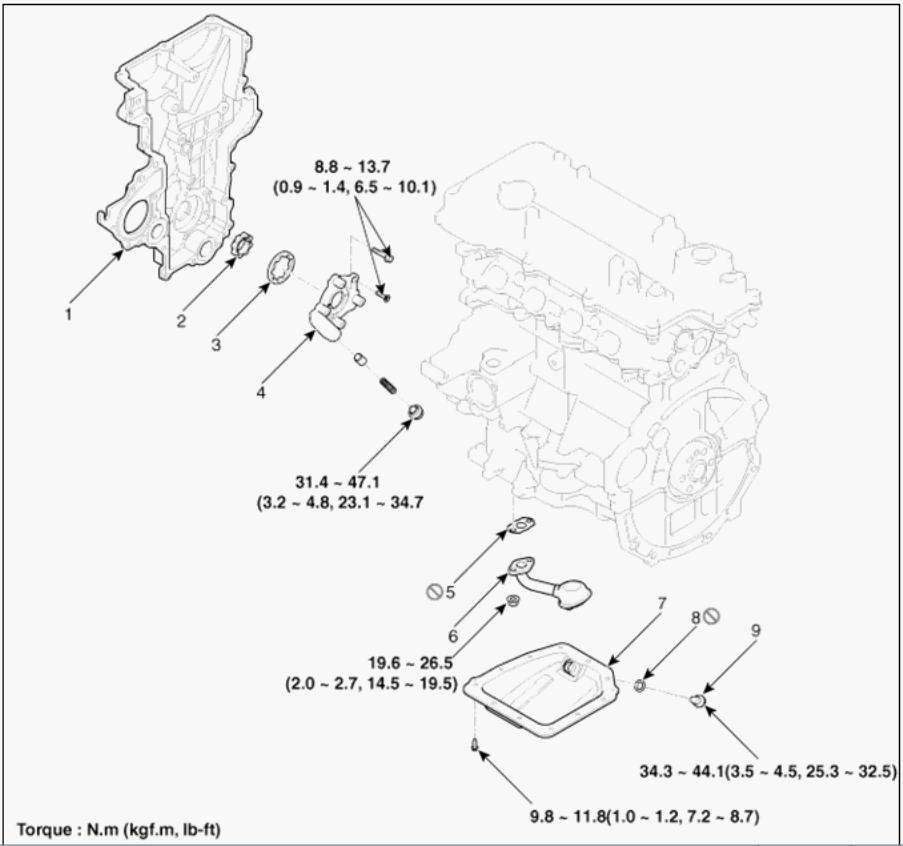

Fig 1: Oil Pump Replacement Components With Torque Specifications
G08804167Courtesy of HYUNDAI MOTOR AMERICA
1. Timing chain cover 6. Oil screen
2. Inner rotor 7. Oil pan
3. Outer rotor 8. Drain plug gasket
4. Pump cover 9. Oil drain plug
5. Gasket
