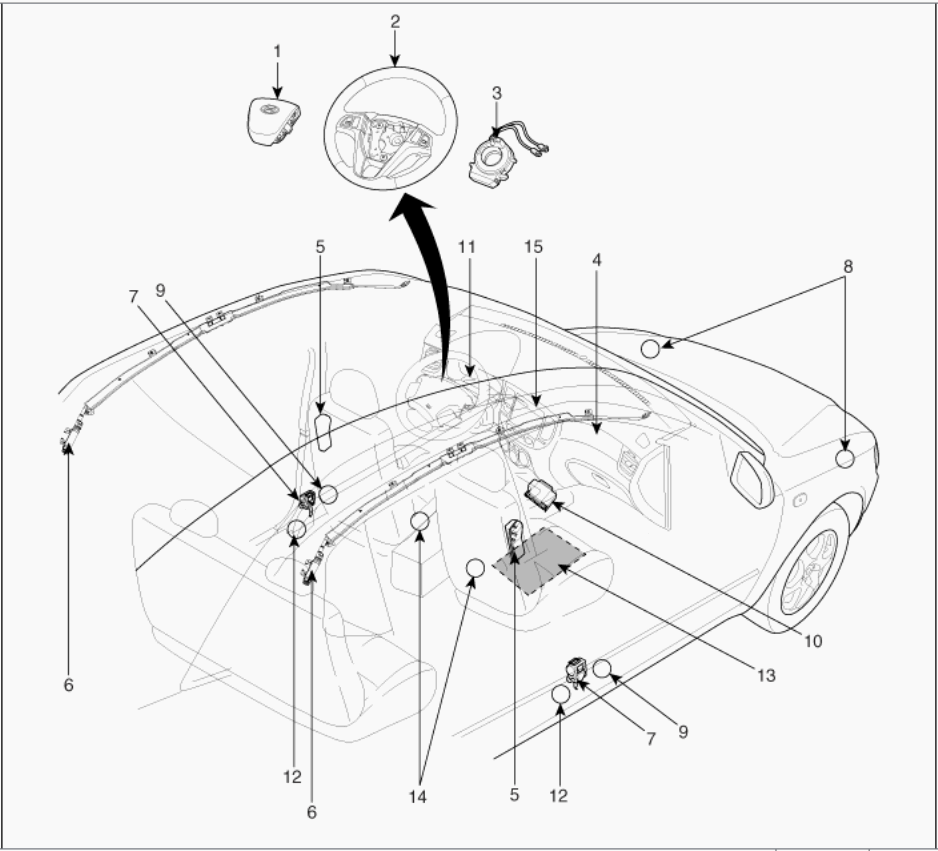

Components and Components Location: Components
| 1. Driver Airbag (DAB) | 9. Side Impact Sensor (SIS) |
| 2. Steering Wheel | 10. Supplemental Restraint System Control Module (SRSCM) |
| 3. Clock Spring | 11. Airbag Warning Lamp |
| 4. Passenger Airbag (PAB) | 12. Anchor Pretensioner (APT) |
| 5. Side Airbag (SAB) | 13. Passive Occupant Detection System (PODS-F) |
| 6. Curtain Airbag (CAB) | 14. Seat Belt Buckle Switch |
| 7. Seat Belt Pretensioner (BPT) | 15. Telltale Lamp |
| 8. Front Impact Sensor (FIS) |
